MI 3155 EurotestXD Featured

Multifunctional testers

MI 3155 EurotestXD is the newest flagship of Metrel’s most advanced line of multi-functional measuring instruments and is designed specifically for testing in industry. What differentiates this instrument from the rest is its ergonomic design and an intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. It is fully compliant with functionality standards (e.g. IEC/EN 61557) and other reference standards for testing (e.g. IEC/EN/HD 60364-4-41,...) as is required for any instrument that performs TRMS current measurements, RCD tests, line and loop impedance tests with 3 (and 4) wires and earth resistance measurements. Besides those, the instrument supports a wide range of tests and measuring functions, including on-line voltage monitoring, phase sequence testing, varistor testing, PI/DAR calculation, luminance measurement, discharge time testing, ISFL measurements, IMD tests as well as functional and visual inspections.

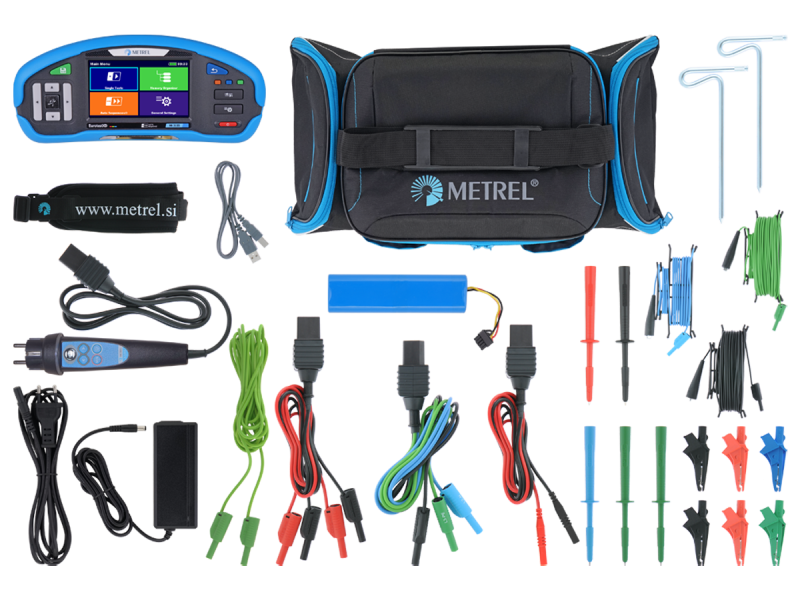

Select a set

Videos

Promotional

Instructional

Instructional

Instructional

Instructional

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • IEC/EN 61557-11 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 11: Effectiveness of residual current monitors (RCM) in TT, TN and IT systems
  • IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • AS / NZ 3018 Electrical installations - Domestic installations
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Electrical Energetics

  • EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
  • IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
  • IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers

Earthing and Grounding

  • EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
  • HD 637 S1 Power installations exceeding 1 kV a.c.
  • IEEE Guide for Safety in AC Substation Grounding
  • IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
  • IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
  • IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
  • EN 50522 Earthing of power installations exceeding 1 000 V a.c.
  • RAT 2008 Spanish high-voltage regulation

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery

Mobile Units Electrical Safety

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
  • ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • IEC/EN 61851 Electric vehicle conductive charging system
  • IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)

Medical electrical equipment

  • AS/NZS 3551 Management programs for medical devices

Medical and surgery rooms' installations

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety

Instrument safety towards user

  • IEC 61000-6-4:2015 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Properties

Measuring functions

  • Live Transformer’s Impedance Measurement with Four Wire Test;
  • Hi-precision Short Circuit Current evaluation with Calculated Hot factor;
  • 3-wire test of PE (RPE function) without extension lead conductor;
  • Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function);
  • 4 wire continuity test;
  • Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation;
  • Varistor test;
  • Continuity of PE conductors with 200 mA DC test current with polarity change;
  • Continuity of PE conductors with 7 mA test current without RCD tripping;
  • 2-wire and 3-wire high-current loop impedance (L-PE) measurement;
  • 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
  • Touch voltage / Contact voltage measurement with external P/S probe.
  • 2-wire and 3-wire line impedance (L-L, L-N) measurement;
  • 1-phase / 3-phase TRMS voltage and frequency measurements;
  • Line, loop and RCD measurements at frequency range 16 ... 400 Hz;
  • Phase sequence;
  • Power and THD measurement (up to the 12th harmonic);
  • RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
  • Earth resistance (3-wire and 2-clamps method);
  • Specific earth resistance with Ro-adapter (option);
  • TRMS leakage and load currents (option);
  • First fault leakage current (ISFL);
  • Testing of Insulation Monitoring Devices (IMDs);
  • Machine mode support with time discharge;
  • Illumination (option);
  • High resolution Loop impendance (mΩ) (option);
  • EVSE (Electrical Vehicle Supply Equipment) support (option);
  • Determining location of cables (option);
  • QR and/or barcode scanner support (option).

Key features

  • Programmable AUTO SEQUENCEs.
  • Predefined profile dependent AUTO SEQUENCEs.
  • Predefined Automatic tests:
    - Auto TT (U, Zln, Zs, Uc);
    - Auto TN/RCD (U, Zln, Zs, Rpe);
    - Auto TN (U, Zln, Zlpe, Rpe);
    - Auto IT (U, Zln, Isc, Isfl, IMD).
  • Functional inspections.
  • Visual inspections.
  • Custom inspections (visual and functional) which may be incorporated into AUTO SEQUENCEs.
  • EVSE AUTO SEQUENCEs and function inspections.
  • Machine functional and visual inspections.
  • Built-in help screens for referencing on site.
  • Built-in fuse tables for automatic evaluation of the line / loop impedance result.
  • Monitoring of all 3 voltages in real-time.
  • Automatic polarity reversal on continuity test.
  • Automated RCD testing procedure (RCD AUTO).
  • Automated Impedance testing procedure (Z AUTO).
  • Measurement filtering according to the selected area group.
  • Built-in charger and rechargeable batteries as standard accessory.
  • BT communication with PC, Android tablets and smart phones via built-in BT.

Technical data

  • Dimensions (w x h x l): 252 x 111 x 165 mm.
  • Mass (without accessories): 1.78 kg.

Applications

Power generation

  • Earthing and lightning protection in thermal energy power plants

Renewable energy sources

  • Generator stator testing
  • Lightning protection testing in wind plants
  • Fall of potential method for solar and wind stations
  • Two clamps method for measuring earth loops in a solar plant

Power distribution

  • Step and touch voltages of transformers
  • Insulation of long cables
  • Transformers ratio, winding resistances, tab changer and connections

Industrial installations

  • Remote antenna tower earthing resistance
  • Impedance of live transformer and fault currents with hot factor
  • Specific earth resistance measurement methods
  • Earth leakage relay and fault currents

Low voltage electrical installation safety

  • Substation electrical safety
  • Mains bonding and touch voltages during fault
  • Switchboards and automatic trip-out protection
  • Public places electrical safety

Low voltage earthing and lightning protection

  • Earthing measurement with fall of potential method
  • 2-clamps method for measuring lightning and earth protection
  • Surge protection devices

Low voltage power quality

  • Effects of power quality issues on living and working environment

Special locations

  • Wet and outdoor locations
  • IT system
  • DC installations
  • EVSE construction and testing

e-Mobility

  • EVSE domestic installation testing
  • EVSE periodic inspection
  • Renewable power and car charging

Mobile installations

  • Vehicles with an on-board generator
  • Road maintenance and construction
  • Emergency response vehicles
  • Telecommunication equipment in mobile installations

Hospital earthing and lightning protection

  • Two clamps method for measuring lightning and earth protection
  • Hospital earthing measurement with fall of potential method
  • Mains bonding and touch voltages during fault current
  • Surge protection devices in hospitals

Power supply and power distribution

  • Hospital switchboards and automatic trip-out protection

Surgery rooms or operating theatres

  • Medical IT system
  • Isolated areas RCDs

Patient recovery rooms and hospital wards

  • Public and workspace electrical safety in healthcare
  • Electrical safety in hospital wet areas

Secondary power sources in healthcare

  • Generator safety
  • Ambulances
  • Field hospital

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3155 EurotestXD en 2022 26.05.2022 pdf 1.33 MB
Manual Language Version Release Notes Type Size Download
MI 3155 EurotestXD uk 1.13.16 17.11.2022 20 752 714 pdf 8.79 MB Login
Fuse tables guide en 1.11.1 20.01.2023 pdf 350.79 KB Login
DoC Language Version Release Notes Type Size Download
UK Declaration of Conformity uk 02.09.2022 QR code External link Unknown
PC Software Language Version Release Notes Type Size Download
SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.23.0.1115 29.02.2024 Readme zip 369.58 MB Login
Android Language Version Release Notes Type Size Download
SW 1304 aMESM Android en 04.01.2021 QR code External link Unknown
