A 2214 Ring Continuity Adapter
Other Instruments / adapters / accessories

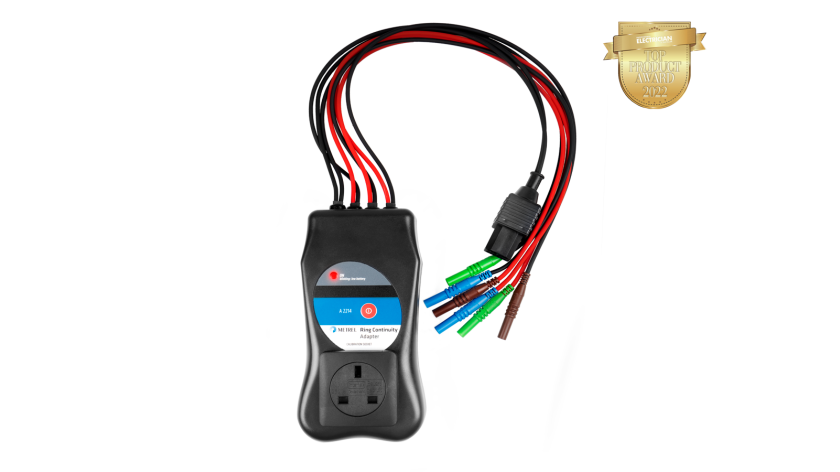

The A 2214 Ring Continuity Adapter is used for continuity measurements of ring final circuits. r1, rn, r2 and R1 + RN, R1 + R2 measurements are performed automatically with the Ring Continuity Adapter A 2214.
Offering improved:
- Safety, no risk of forgotten connections.
- Convenience, no need to exchange leads or use connectors.
- Thoroughness, R1+RN also measured simultaneously.
- Test speed, connections made by the adapter.
- Accuracy, with the easy-null capability.
- Usability, can be magnetically attached to the distribution board.
The A 2214 is quickly connected to the colour-coded incoming and outgoing L, N and PE wires of the circuit at the distribution board, and controlled by the tester to perform all the required ring continuity tests. This quick and easy method significantly simplifies and reduces the time involved in testing ring final circuits thoroughly.
Do you own this product?

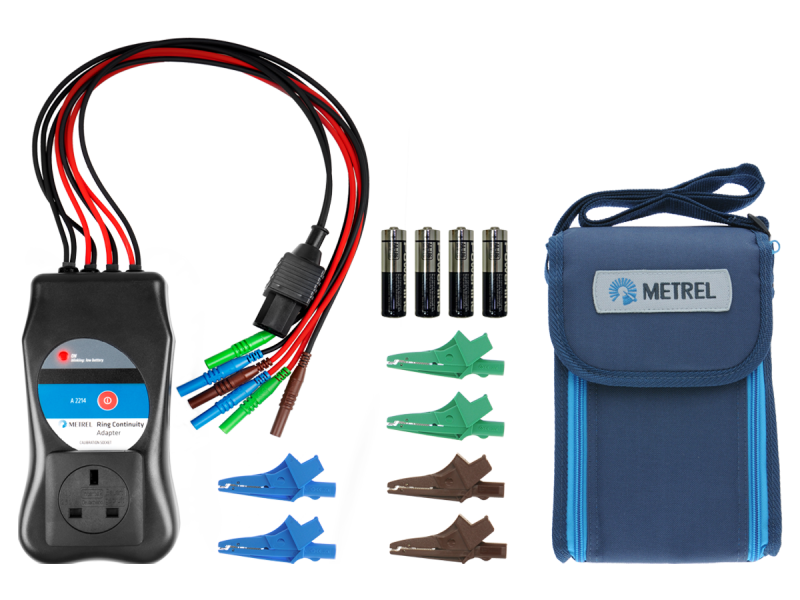

Select a set
- A 2214 Ring Continuity Adapter,
- Small soft carrying bag A 1020,
- Crocodile clip A 1297, brown, 2 pieces,
- Crocodile clip A 1309, green, 2 pieces,
- Crocodile clip A 1310, blue, 2 pieces,
- Battery A 1784, size AA, 1.5V alkaline, 4 pieces,
- Instruction manual.
Videos
Promotional
Standards applied
Building LV Installation
- BS 7671 IEE Wiring Regulations (18th edition)
Instrument safety towards user
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Properties
For use with the following testers:
When the testers firmware is updated the Ring Continuity Adapter A 2214 will work with the following:
- MI 3155 EurotestXD,
- MI 3152 EurotestXC (HW 3 and higher)*,
- MI 3125 BT COMBO,
- MI 3102 BT EurotestXE,
- MI 3100 s EurotestEASI,
- MI 3100 SE EurotestEASI.
(*) Tester’s HW version info can be found in “About” menu located in “General Settings” of main menu.
Key features
- Automated continuity testing (patented) of ring final circuits: r1, rn, r2 and R1+RN, R1+R2;
- Live, neutral and PE resistance all measured at a press of a button;
- Automatic calculation of (r1+rn)/4 and (r1+r2)/4 for easy results evaluation;
- Connected once, no need to change leads until all continuity tests are complete;
- Quick, efficient and easy. Optimize and significantly speed up (up to 60% or more) continuity tests of ring final circuits.
Applications
- Continuity testing of ring final circuits: r1, rn, r2 and R1+RN, R1+R2.
Technical data
- Dimensions (w x l x h): 10 cm x 20 cm x 6 cm
- Weight: 0.62 kg (without batteries)
Applications
Preventative maintenance
- Testing ring final circuits
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| A 2214 Ring Continuity Adapter | uk | 2022 | 18.08.2022 | 1.24 MB |
|
||
