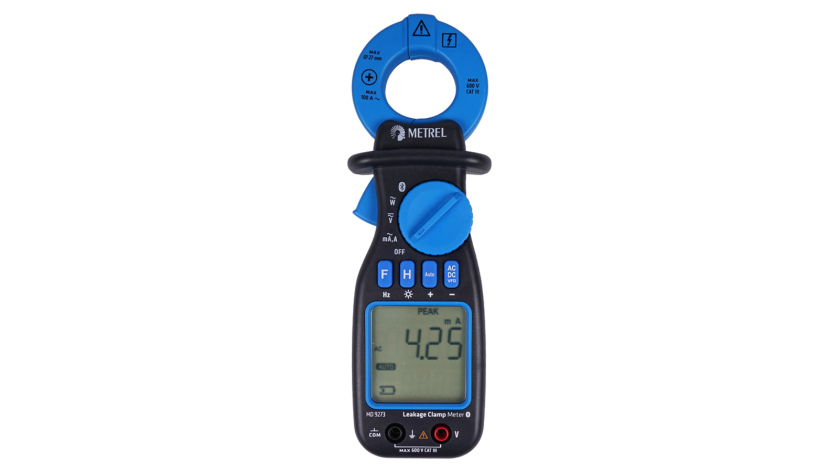

MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions New
Clamp meters
The MD 9273 is the new Bluetooth-enabled expansion to the Metrel multifunctional testers MI 3155, MI 3152 and MI 3325. When used together, they form a team for measuring data from a safe distance. The multifunctional instruments can record inrush current from MD 9273 measurement and display data in table or graph form, or they can be used to generate a 128 Hz signal that MD 9273 can filter and follow for cable tracing. When acting as a remote probe, it can send data on current, voltage, power, and harmonics. On the other hand, it is an independent instrument with improved accuracy, construction, and new functions like VFD filter. It can accurately read the TRMS AC leakage current of a system, detect losses in the system, suggest possible reasons for the loss, sense the harmonics in the signal, and perform basic power quality tests.
Do you own this product?
Which is the best for you?
Select a set
- MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions
- Test lead with probe, 2 pcs
- AMD 9028 Alligator clip, 2 pcs
- 1.5 V battery, type AA, 2 pcs
- Pouch
- Instruction manual
- Calibration certificate
Videos
Promotional
Instructional
Instructional
Instructional
Instructional
Instructional
Instructional
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
Instrument safety towards user
- Directive EMC 2004/108/EC on electromagnetic compatibility
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
- IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
- IEC/EN 61010-2-032 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held and hand-manipulated current sensors for electrical test and measurement
- IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
Properties
Measuring functions
- TRMS AC voltage measurement;
- TRMS AC current measurement;
- Frequency measurement;
- VFD frequency and voltage measurement;
- Harmonics measurement;
- Power parameters measurement.
Key features
- Bluetooth connection to MI 3155, MI 3152 and MI 3325.
- Inrush current recording with MI 3155, MI 3152 and MI 3325.
- Online measurements of current, voltage, power, current harmonics, and voltage harmonics.
- 128 Hz notch filter for cable tracing.
- TRMS: accurate measurements on sinusoidal and non-sinusoidal signals.
- Jaw size: 28 mm.
- Shielded Jaw: shielded jaw allows the clamp meter to be used in the noisiest environments.
- Accurate: readings of AC current with an accuracy of 0.8 % and a base resolution of 0.01 mA and voltage with an accuracy of 0.5 % and a base resolution of 0.1 V.
- Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
- Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
- Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 19th.
- THD and PF: dual display allows readings to be displayed along with Total Harmonic Distortion (THD) or Power Factor (PF).
- Peak value: the peak value of the waveform or crest factor can be displayed.
- MAX/MIN/HOLD mode: displays maximum, minimum or average measured value.
Technical data
- Dimensions (w x h x l): 60 x 43 x 190 mm
- Mass (without accessories): 255 g
Applications
Power generation
- Power quality analysis in medium voltage facilities
Low voltage earthing and lightning protection
- Surge protection devices
Low voltage power quality
- Uninterruptible power supply
Special locations
- Wet and outdoor locations
- EVSE construction and testing
Machines safety
- Machines and fixed connected loads safety
Hospital earthing and lightning protection
- Surge protection devices in hospitals
Power supply and power distribution
- Hospital switchboards and automatic trip-out protection
- Power quality
- Uninterruptible power supply in healthcare
Surgery rooms or operating theatres
- Medical IT system
- Isolated areas RCDs
- Medical devices
Patient recovery rooms and hospital wards
- Public and workspace electrical safety in healthcare
Secondary power sources in healthcare
- Generator safety
- Ambulances
Preventative maintenance
- Basic earth resistance
- Voltage measurements
- Current measurements
- Safety of portable appliances
Troubleshooting
- Photovoltaic systems
- Appliances troubleshooting
- Phase sequence detection
General purpose
- Hobby work
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MD 9273 Bluetooth® TRMS Leakage Clamp with Power Functions | en | 2023 | 24.08.2023 | 424.73 KB |
|
| DoC | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| UK Declaration of Conformity | uk | 02.09.2022 | QR code | External link | Unknown |
|
