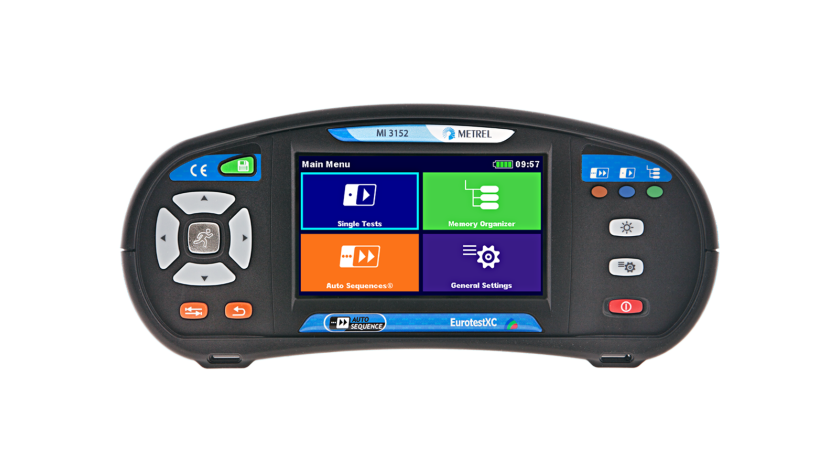

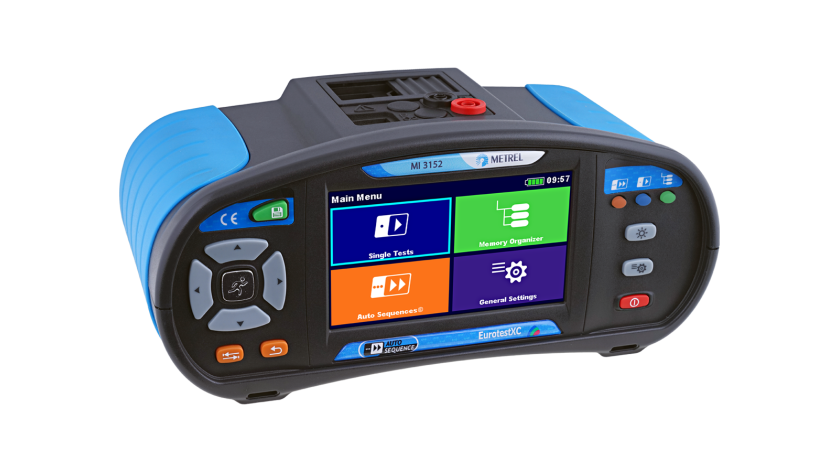

MI 3152 EurotestXC is an instrument from the new generation of Metrel’s multifunctional measuring instruments. The already well known functions like complete installation safety testing according to IEC/EN 61557 and AUTO SEQUENCE testing of TN, TT and IT earthing systems are managed by a completely new user interface based on large colour touch screen display. A wide range of functions is included: from on-line voltage monitoring, phase sequence testing, earth resistance measurement, illuminance measurement and TRMS current measurement up to RCD tests, line and loop impedance tests, earth resistance measurements as well as ISFL measurements and the IMD tests.
Do you own this product?

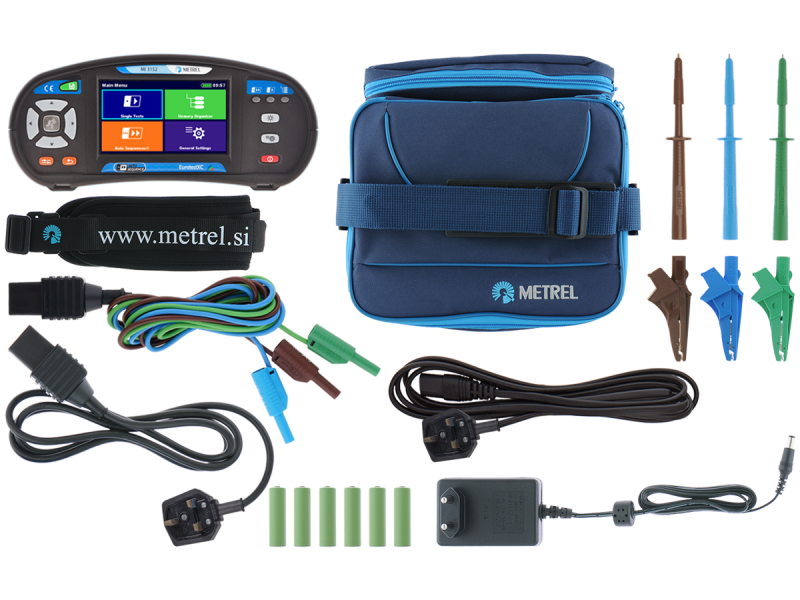

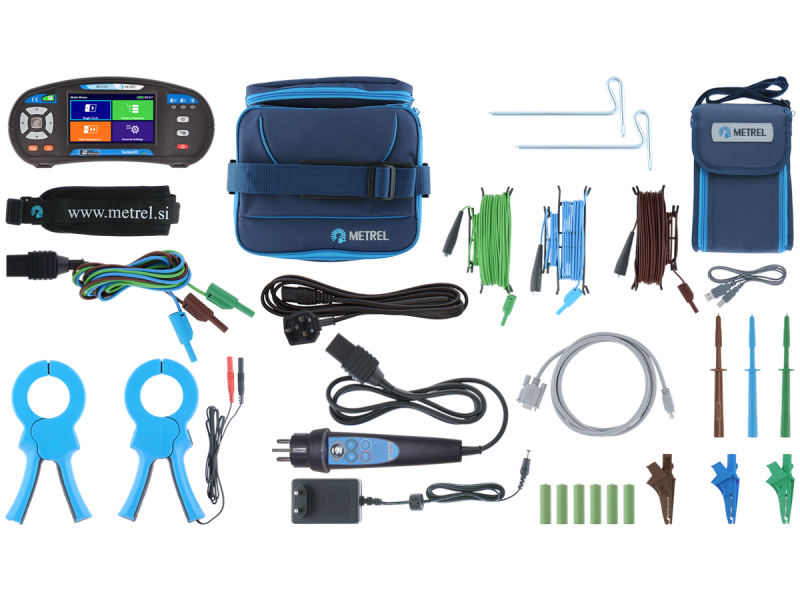

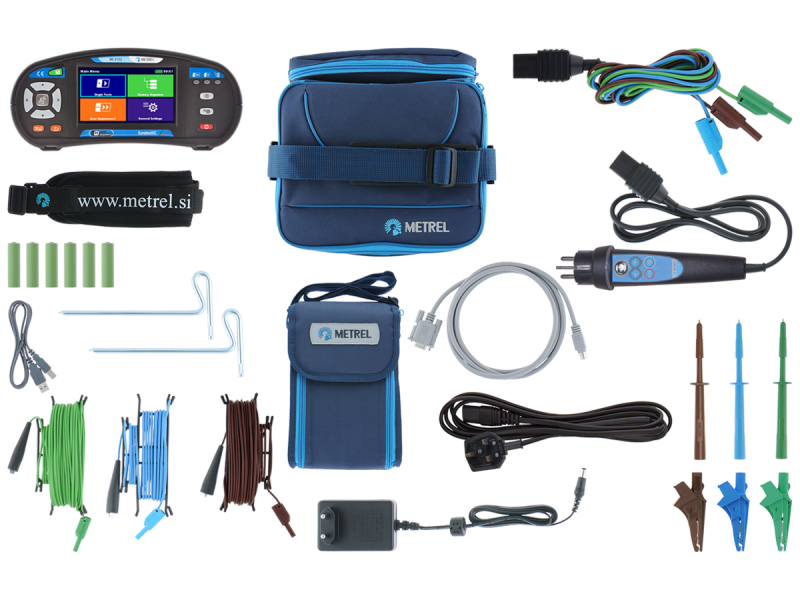

Select a set
Videos
Promotional
Instructional
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-6 Electrical Installations for Buildings - Verification
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 60755 General safety requirements for residual current operated protective devices
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- AS / NZ 3017 Electrical installations – Verification guidelines
- AS / NZ 3018 Electrical installations - Domestic installations
- BS 7671 IEE Wiring Regulations (18th edition)
- CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Power quality
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 62271 High-voltage switchgear and controlgear - series
- IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
- IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers
Mobile Units Electrical Safety
- eMOB Competences: Electrical LV Installations in Mobile Units Safety
- IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
- ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety
Electrical Vehicle Supply Equipment
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
- IEC/EN 61851 Electric vehicle conductive charging system
- IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
Medical electrical equipment
- AS/NZS 3551 Management programs for medical devices
Medical and surgery rooms' installations
- MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
Properties
Measuring functions
- Insulation resistance with DC voltage from 50 V to 1000 V;
- Varistor test;
- Continuity of PE conductors with 200 mA DC test current with polarity change;
- Continuity of PE conductors with 7 mA test current without RCD tripping;
- Line/Loop impedance combined also in one function Z AUTO;
- Loop impedance with Trip Lock RCD function;
- TRMS voltage and frequency measurements;
- Phase sequence;
- Power and THD measurement (up to the 12th harmonic);
- RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
- Earth resistance (3-wire and 2-clamps method);
- Specific earth resistance with Ro-adapter (option);
- TRMS leakage and load currents (option);
- First fault leakage current (ISFL);
- Testing of Insulation Monitoring Devices (IMDs);
- Illumination (option);
- High resolution Loop impendance (mΩ) (option);
- EVSE AUTO SEQUENCEs and function inspections;
- Determining location of cables (option);
- QR and/or barcode scanner support (option).
Key features
- Predefined Automatic tests:
- Auto TT (U, Zln, Zs, Uc);
- Auto TN/RCD (U, Zln, Zs, Rpe);
- Auto TN (U, Zln, Zlpe, Rpe);
- Auto IT (U, Zln, Isc, Isfl, IMD). - Built-in help screens for referencing on site.
- Built-in fuse tables for automatic evaluation of the line / loop impedance result.
- Monitoring of all 3 voltages in real-time.
- Automatic polarity reversal on continuity test.
- Automated RCD testing procedure.
- Built-in charger and rechargeable batteries as standard accessory.
- BT communication with PC, Android tablets and smart phones via built-in BT.
- PC SW Metrel ES Manager for creation of test structures and uploading, downloading of test results and report creation.
- Support for aMESM Android APP, data management tool (option).
Technical data
- Dimensions (w x h x l): 230 x 103 x 115 mm.
- Mass (without accessories): 1.3 kg.
Applications
Power generation
- Earthing and lightning protection in thermal energy power plants
Renewable energy sources
- Generator stator testing
- Lightning protection testing in wind plants
- Two clamps method for measuring earth loops in a solar plant
Power distribution
- Insulation of long cables
Industrial installations
- Remote antenna tower earthing resistance
- Specific earth resistance measurement methods
Low voltage electrical installation safety
- Substation electrical safety
- Mains bonding and touch voltages during fault
- Switchboards and automatic trip-out protection
- Public places electrical safety
Low voltage earthing and lightning protection
- Earthing measurement with fall of potential method
- 2-clamps method for measuring lightning and earth protection
- Surge protection devices
Special locations
- Wet and outdoor locations
- IT system
- DC installations
- EVSE construction and testing
e-Mobility
- EVSE domestic installation testing
- EVSE periodic inspection
- Renewable power and car charging
Mobile installations
- Vehicles with an on-board generator
- Emergency response vehicles
- Telecommunication equipment in mobile installations
Hospital earthing and lightning protection
- Two clamps method for measuring lightning and earth protection
- Hospital earthing measurement with fall of potential method
- Mains bonding and touch voltages during fault current
- Surge protection devices in hospitals
Power supply and power distribution
- Hospital switchboards and automatic trip-out protection
Surgery rooms or operating theatres
- Medical IT system
- Isolated areas RCDs
Patient recovery rooms and hospital wards
- Public and workspace electrical safety in healthcare
- Electrical safety in hospital wet areas
Secondary power sources in healthcare
- Generator safety
- Ambulances
- Field hospital
