No electrical installation safety tester, single function or multifunctional, is complete without appropriate accessories. We are not talking only about trivial ones like the test leads, probes, crocodile clips and other essentials, but specialized adapters for expanding measuring ranges of connected electrical installation safety testers or for enabling new test and measurement functionalities.

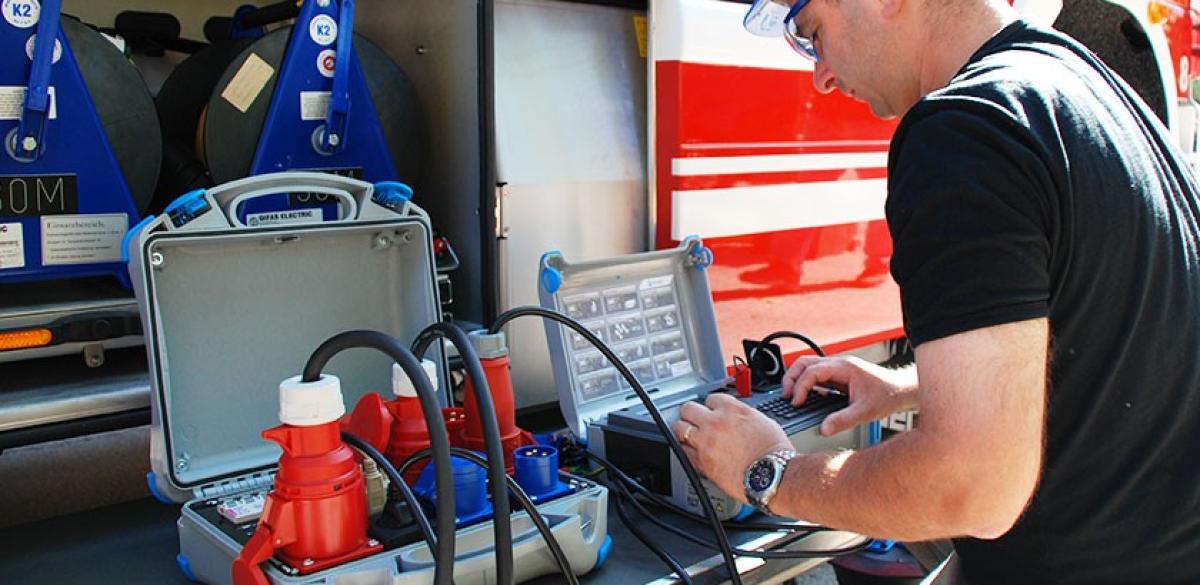

Metrel has developed adapters for automated testing of 3-phase electrical systems, for testing automatic trip out protection in high-voltage equipment using high current and even a dedicated adapter for testing proper functioning and safety of portable RCD devices. Last but not least are adapters for comprehensive testing of electric vehicle supply equipment (EVSE).

Features*

  • Measurement of earth leakage relay (ELR) trip-out testing time and current.
  • Testing of earth leakage relay (ELR) types AC, A and B.
  • Floating voltmeter for partial contact results.
  • Selectable test load (16.6 % to 100 %).
  • Improved thermal performance.
  • Accessible inputs/outputs for connection of safety testers.
  • Battery (Li-ion) or mains powered.
  • Automated 3-phase system testing.
  • Blackbox design (remote control via an Android device).
  • 4-wire 300 A Z Line and Z Loop impedance testing.
  • Support for impedance measurements in 800 V / 16 ... 420 Hz AC networks.
  • High current dR 300 A 4-wire partial voltage drop and current path resistance measurements.
  • Ground fault analysis on the basis of contact, touch and step voltages.
  • Support for one-clamp high current grounding method with clamps (flex & iron).
  • DC source & line resistance measurements in 3 ... 260 V DC networks.
  • Functional, diagnostic and electrical safety testing of electric vehicle supply equipment (EVSE).
  • Safety testing of Mode 2 EV cables and Mode 3 EV cables.
  • Bluetooth communication with Metrel’s electrical safety testers.
  • IP protection: IP65 (closed case), IP54 (open case).
  • Up to CAT IV 600 V (3000 m) safety category.



*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.

Applications*

  • Single clamp method for testing lightning system.
  • Partial earth bond resistance with single flex clamp method.
  • Earth leakage relay and fault currents.
  • Substation electrical safety.
  • Mains bonding and touch voltages during fault.
  • Switchboards and automatic trip-out protection.
  • EVSE construction and testing.
  • Mains bonding and touch voltages during fault current.



*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
