A 1632 eMobility Analyser Featured

eMobility

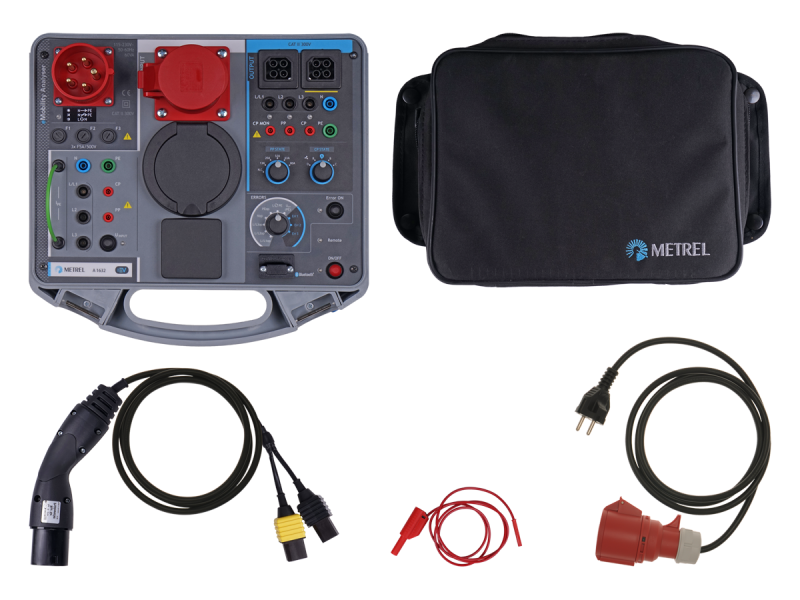

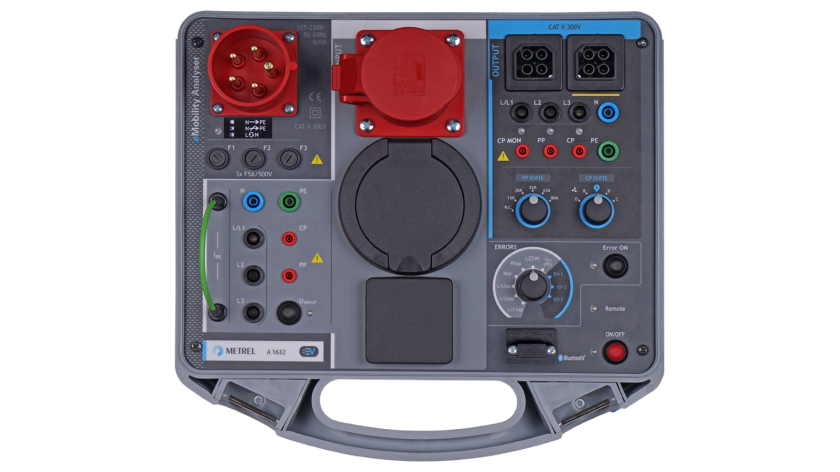

The A 1632 eMobility Analyser is a special accessory designed for diagnostic testing of Electric Vehicle Supply Equipment (EVSE) together with supported METREL installation testers. It supports verification of electrical safety and functional testing of Type 1 and/or Type 2 EVSE as well as testing of Mode 2 and Mode 3 electrical vehicle (EV) charging cables and communication monitoring between the charging station and the EV during charging. Fully supported professional station-based and cable-based report creation with MESM software.

Select a set

Videos

Promotional

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series

Mobile Units Electrical Safety

  • ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety

Properties

Measuring functions

  • Functional testing of EVSE via simulation of electrical vehicle’s CP and PP circuits.
  • Diagnostic testing of EVSE via simulation of errors on CP circuit (output side).
  • Electrical safety testing of EVSE.
  • Functional testing of Mode 2 EV cables via simulation of electrical vehicle’s CP and PP circuits.
  • Diagnostic testing of Mode 2 EV cables via simulation of errors on CP circuit (output side) and mains (input side).
  • Electrical safety testing of Mode 2 EV cables with installed IC-CPD protection.
  • Electrical safety testing of Mode 3 EV cables.
  • Accessible inputs/outputs for connection of safety testers.
  • Bluetooth communication with Metrel safety testers.

Technical data

  • Dimensions (w x h x l): 360 mm x 160 mm x 330 mm
  • Mass (without accessories): 5.2 kg

Applications

Special locations

  • EVSE construction and testing

e-Mobility

  • EVSE domestic installation testing
  • EVSE periodic inspection
  • Renewable power and car charging

Mobile installations

  • Vehicles with an on-board generator

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
A 1632 eMobility Analyser en 2019 04.07.2019 pdf 723.51 KB
Manual Language Version Release Notes Type Size Download
A 1632 eMobility Analyser en 1.3.7 11.09.2020 20 752 886 pdf 1.14 MB Login
Android Language Version Release Notes Type Size Download
SW 1401 eMobility Android en 04.01.2021 QR code External link Unknown
