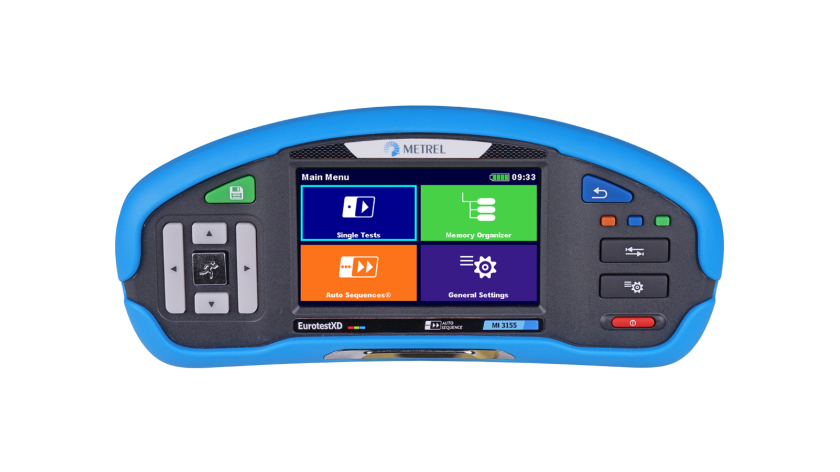

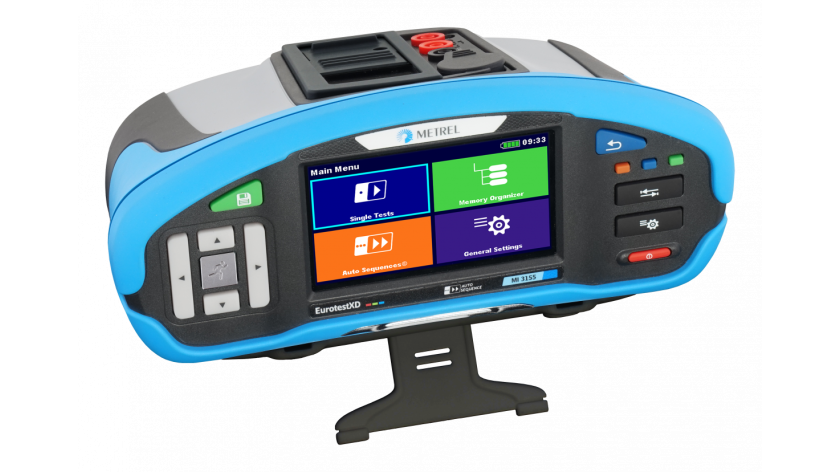

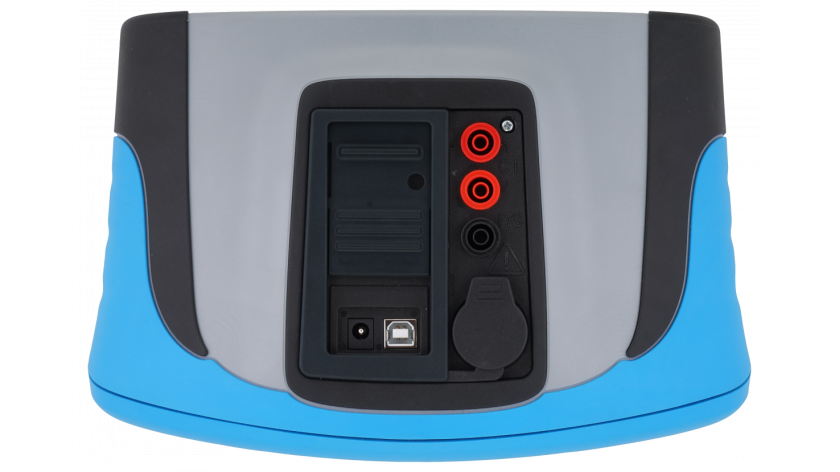

MI 3155 EurotestXD Featured
Multifunctional testers
MI 3155 EurotestXD is the newest flagship of Metrel’s most advanced line of multi-functional measuring instruments and is designed specifically for testing in industry. What differentiates this instrument from the rest is its ergonomic design and an intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. It is fully compliant with functionality standards (e.g. IEC/EN 61557) and other reference standards for testing (e.g. IEC/EN/HD 60364-4-41,...) as is required for any instrument that performs TRMS current measurements, RCD tests, line and loop impedance tests with 3 (and 4) wires and earth resistance measurements. Besides those, the instrument supports a wide range of tests and measuring functions, including on-line voltage monitoring, phase sequence testing, varistor testing, PI/DAR calculation, luminance measurement, discharge time testing, ISFL measurements, IMD tests as well as functional and visual inspections.
Do you own this product?
Select a set

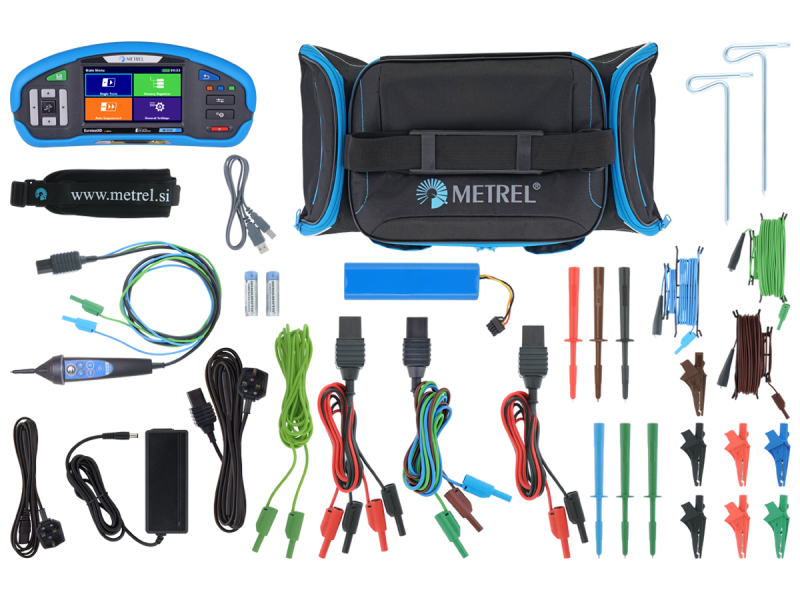

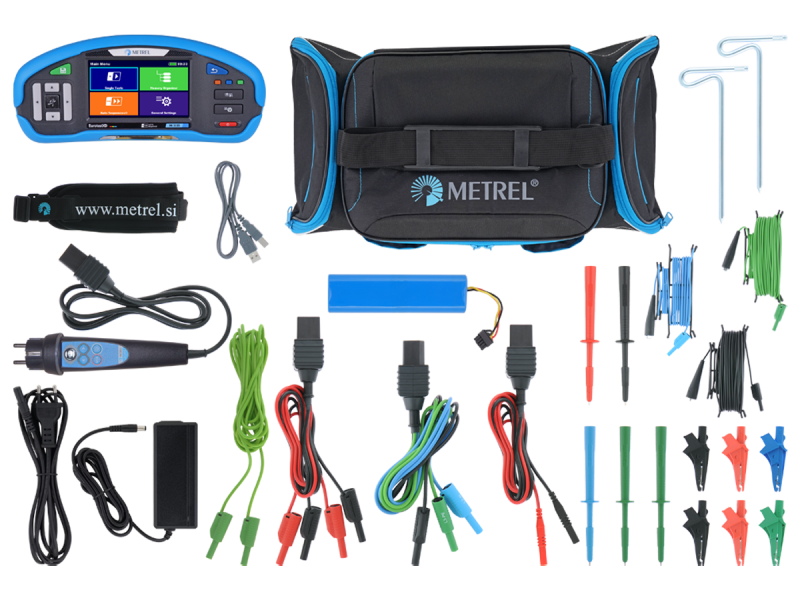

- Instrument MI 3155 EurotestXD
- 4400 mAh battery pack (installed in tester)
- Power supply adapter 12V/3A
- Tip commander + 2 x bat. AAA
- Mains plug cable 1,5 m
- Test lead green 1,5 m
- Test lead, 4-wire, 1,5 m
- Test lead, 3-wire, 1,5 m
- Test lead, 2-wire, 2,5 kV, 1.5 m
- Test probe, 6 pcs (black, brown, blue, green-2, red)
- Crocodile clip, 7 pcs (black-2, brown, blue, green, red-2)
- Earth set, 3-wire 20 m
- USB cable
- Soft carrying bag
- Soft carrying neck belt
- Metrel ES Manager BASIC license*
- Short instruction manual
- Instruction manual (CD)
- Guide for testing and verification of Low voltage installations (CD)
- Calibration certificate
- Metrel ES Manager (program installation) A 1481 (CD)

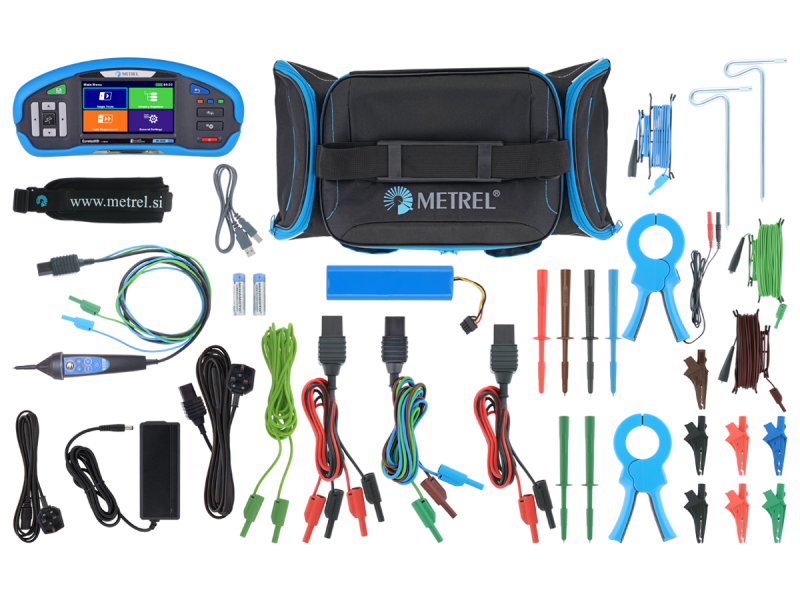

- Instrument MI 3155 EurotestXD
- 8800 mAh battery pack (installed in tester)
- Power supply adapter 12V/3A
- Tip commander + 2 x bat. AAA
- Mains plug cable 1,5 m
- Test lead green 1,5 m
- Test lead, 4-wire, 1,5 m
- Test lead, 3-wire, 1,5 m
- Test lead, 2-wire, 2,5 kV, 1,5 m
- Test probe, 6 pcs (black, brown, blue, green-2, red)
- Crocodile clip, 7 pcs (black-2, brown, blue, green, red-2)
- Earth set, 3-wire 20 m
- USB cable
- Soft carrying bag
- Soft carrying neck belt
- Current clamp A 1018 (low range, leakage)
- Current clamp A 1019
- Metrel ES Manager PRO license*Short instruction manual
- Instruction manual (CD)
- Guide for testing and verification of Low voltage installations (CD)
- Calibration certificate
- Metrel ES Manager (program installation) A 1481 (CD)
- Metrel aMESM Android app
Videos
Promotional
Instructional
Instructional
Instructional
Instructional
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-6 Electrical Installations for Buildings - Verification
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 60755 General safety requirements for residual current operated protective devices
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- IEC/EN 61557-11 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 11: Effectiveness of residual current monitors (RCM) in TT, TN and IT systems
- IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
- VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- AS / NZ 3017 Electrical installations – Verification guidelines
- AS / NZ 3018 Electrical installations - Domestic installations
- BS 7671 IEE Wiring Regulations (18th edition)
- CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Electrical Energetics
- EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
- IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
- IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers
Earthing and Grounding
- EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
- HD 637 S1 Power installations exceeding 1 kV a.c.
- IEEE Guide for Safety in AC Substation Grounding
- IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
- IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
- IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
- EN 50522 Earthing of power installations exceeding 1 000 V a.c.
- RAT 2008 Spanish high-voltage regulation
Power quality
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 62271 High-voltage switchgear and controlgear - series
- IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
- IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery
Mobile Units Electrical Safety
- eMOB Competences: Electrical LV Installations in Mobile Units Safety
- IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
- ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety
Electrical Vehicle Supply Equipment
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
- IEC/EN 61851 Electric vehicle conductive charging system
- IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
Medical electrical equipment
- AS/NZS 3551 Management programs for medical devices
Medical and surgery rooms' installations
- MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
Instrument safety towards user
- IEC 61000-6-4:2015 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
Properties
Measuring functions
- Live Transformer’s Impedance Measurement with Four Wire Test;
- Hi-precision Short Circuit Current evaluation with Calculated Hot factor;
- 3-wire test of PE (RPE function) without extension lead conductor;
- Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function);
- 4 wire continuity test;
- Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation;
- Varistor test;
- Continuity of PE conductors with 200 mA DC test current with polarity change;
- Continuity of PE conductors with 7 mA test current without RCD tripping;
- 2-wire and 3-wire high-current loop impedance (L-PE) measurement;
- 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
- Touch voltage / Contact voltage measurement with external P/S probe.
- 2-wire and 3-wire line impedance (L-L, L-N) measurement;
- 1-phase / 3-phase TRMS voltage and frequency measurements;
- Line, loop and RCD measurements at frequency range 16 ... 400 Hz;
- Phase sequence;
- Power and THD measurement (up to the 12th harmonic);
- RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
- Earth resistance (3-wire and 2-clamps method);
- Specific earth resistance with Ro-adapter (option);
- TRMS leakage and load currents (option);
- First fault leakage current (ISFL);
- Testing of Insulation Monitoring Devices (IMDs);
- Machine mode support with time discharge;
- Illumination (option);
- High resolution Loop impendance (mΩ) (option);
- EVSE (Electrical Vehicle Supply Equipment) support (option);
- Determining location of cables (option);
- QR and/or barcode scanner support (option).
Key features
- Programmable AUTO SEQUENCEs.
- Predefined profile dependent AUTO SEQUENCEs.
- Predefined Automatic tests:
- Auto TT (U, Zln, Zs, Uc);
- Auto TN/RCD (U, Zln, Zs, Rpe);
- Auto TN (U, Zln, Zlpe, Rpe);
- Auto IT (U, Zln, Isc, Isfl, IMD). - Functional inspections.
- Visual inspections.
- Custom inspections (visual and functional) which may be incorporated into AUTO SEQUENCEs.
- EVSE AUTO SEQUENCEs and function inspections.
- Machine functional and visual inspections.
- Built-in help screens for referencing on site.
- Built-in fuse tables for automatic evaluation of the line / loop impedance result.
- Monitoring of all 3 voltages in real-time.
- Automatic polarity reversal on continuity test.
- Automated RCD testing procedure (RCD AUTO).
- Automated Impedance testing procedure (Z AUTO).
- Measurement filtering according to the selected area group.
- Built-in charger and rechargeable batteries as standard accessory.
- BT communication with PC, Android tablets and smart phones via built-in BT.
Technical data
- Dimensions (w x h x l): 252 x 111 x 165 mm.
- Mass (without accessories): 1.78 kg.
Applications
Power generation
- Earthing and lightning protection in thermal energy power plants
Renewable energy sources
- Generator stator testing
- Lightning protection testing in wind plants
- Fall of potential method for solar and wind stations
- Two clamps method for measuring earth loops in a solar plant
Power distribution
- Step and touch voltages of transformers
- Insulation of long cables
- Transformers ratio, winding resistances, tab changer and connections
Industrial installations
- Remote antenna tower earthing resistance
- Impedance of live transformer and fault currents with hot factor
- Specific earth resistance measurement methods
- Earth leakage relay and fault currents
Low voltage electrical installation safety
- Substation electrical safety
- Mains bonding and touch voltages during fault
- Switchboards and automatic trip-out protection
- Public places electrical safety
Low voltage earthing and lightning protection
- Earthing measurement with fall of potential method
- 2-clamps method for measuring lightning and earth protection
- Surge protection devices
Low voltage power quality
- Effects of power quality issues on living and working environment
Special locations
- Wet and outdoor locations
- IT system
- DC installations
- EVSE construction and testing
e-Mobility
- EVSE domestic installation testing
- EVSE periodic inspection
- Renewable power and car charging
Mobile installations
- Vehicles with an on-board generator
- Road maintenance and construction
- Emergency response vehicles
- Telecommunication equipment in mobile installations
Hospital earthing and lightning protection
- Two clamps method for measuring lightning and earth protection
- Hospital earthing measurement with fall of potential method
- Mains bonding and touch voltages during fault current
- Surge protection devices in hospitals
Power supply and power distribution
- Hospital switchboards and automatic trip-out protection
Surgery rooms or operating theatres
- Medical IT system
- Isolated areas RCDs
Patient recovery rooms and hospital wards
- Public and workspace electrical safety in healthcare
- Electrical safety in hospital wet areas
Secondary power sources in healthcare
- Generator safety
- Ambulances
- Field hospital
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3155 EurotestXD | en | 2022 | 26.05.2022 | 1.33 MB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3155 EurotestXD | uk | 1.14.17 | 23.09.2024 | 20 752 714 | 10.1 MB |
Login
|
|
| Fuse tables guide | en | 1.11.1 | 20.01.2023 | 350.79 KB |
Login
|
| DoC | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| UK Declaration of Conformity | uk | 02.09.2022 | QR code | External link | Unknown |
|
| PC Software | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.25.0.51 | 10.10.2024 | Readme | zip | 440.85 MB |
Login
|
| Android | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| SW 1304 aMESM Android | en | 04.01.2021 | QR code | External link | Unknown |
|
Where to buy?
Search for distributors and partners
Have a question?
Speak with a specialist
