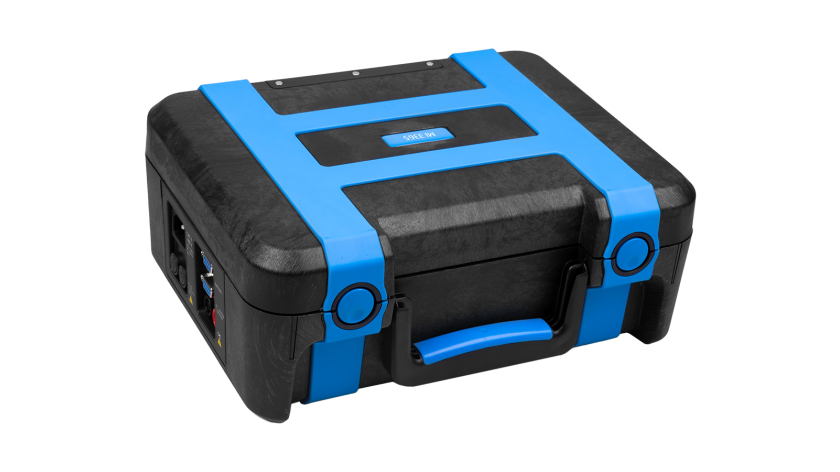

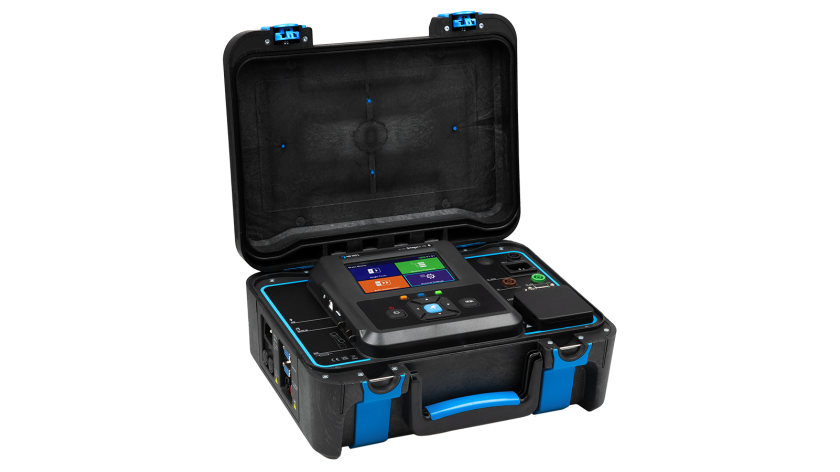

New upgraded series of OmegaEE XD brings 4 models of the instrument, intended for professional use in the most demanding applications. All of them support user accounts, which means that one device can be used by several electricians. Model versions cover the following fields of testing: portable appliances, welding equipment, medical devices, professional testing of PRCD devices, and testing of EV charging cables mode 2 and mode 3. All instruments have an advanced built-in user interface that enables the execution of pre-defined and user-created AUTOSEQUENCE®s. Large memory capacity (8 GB microSD card) enables the user long term saving and archiving of data. All the instruments are specially designed for long-term testing, since their memory structure enables simple searching through the archive of devices and quick re-execution of (periodic) tests. Great emphasis was put on support for peripheral devices such as printers and barcode or QR code scanners and RFID readers (in Bluetooth and wired versions). On top of that, all instrument versions are supported by our Metrel ES Manager PC software.
Do you own this product?

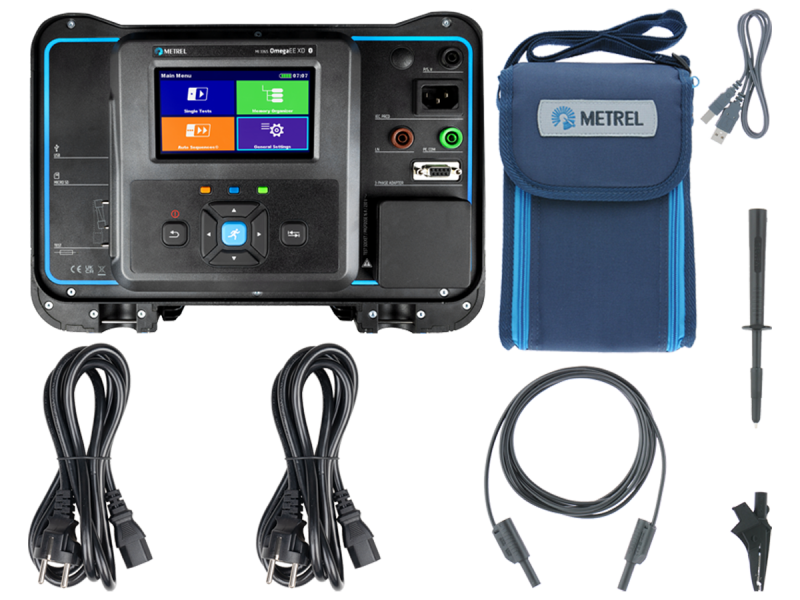

Select a set
Videos
Instructional
Instructional
Instructional
Promotional
Corporate
Standards applied
Building LV Installation
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts
- AS / NZ 3017 Electrical installations – Verification guidelines
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- AWE Competences: Arc Welding Equipment Safety Testing
- EN 50699 Recurrent Test of Electrical Equipment
- EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
- AS / NZ 3760 In-service safety inspection and testing of electrical equipment
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
- NEN 3140 Guidelines for safe working practices
- IEC/EN 60974 Arc welding equipment series
- IEC/EN 60974-4 Arc welding equipment - Part 4: Periodic inspection and testing
- IEC 62368-1:2023 Audio/video, information and communication technology equipment - Part 1: Safety requirements
- IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment
Electrical Vehicle Supply Equipment
- IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
Instrument safety towards user
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
Properties
Measuring functions
EN 50678 / EN 50699
- Visual inspections;
- Continuity // Protective earth resistance 200mA;
- Continuity // Protective earth resistance 10A, 25A;1
- Insulation Resistance (Riso, Riso-S);
- Protective conductor current (Direct, Residual, Alternative);
- Touch leakage current (Direct, Alternative);
- Leakage current produced by a floating input, PE current (Direct, Residual);
- Leakage current produced by a floating input, Touch current (Direct);
- Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U);
- Power (P, S, Q, PF, THDu, THDi, CosØ, I, U);
- PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole));
- PRCD test (PE conductor, Open conductor, PE probe);
- RCD test (type A, AC, B, B+, F);
- IC-CPD test (EV-RCD, PE conductor);
- Voltage, SELV/PELV;
- Flash test, (1500V, 3000V);2
- Polarity / Active polarity test;
- EVSE Diagnostic test;
- Fuse test;
- Clamp current;3
- Functional inspections.
1(25A, M, F, models only),2(MI 3365 F model only), 3(With optional A 1283)
IEC/EN 62353 extended to tests in acc. with IEC 60601, (MI 3365 M only)
- Insulation resistance;
- Touch leakage current;
- Patient leakage current;
- Equipment leakage (Direct, Differential, Alternative);
- Applied part leakage (Direct, Alternative).
IEC/EN 60974-4 (optional A 1422)
- Insulation resistance;
- Welding circuit leakage;
- Protective conductor leakage;
- No-load voltage.
Key features
- Pre-defined AUTOSEQUENCE®s, according to: EN 50678, EN 50699, EV-Cables, P-RCDs, Floating inputs, EN 62368-1, EN 60974-4, EN 62353.
- Read the code and test: QR and barcode system of labelling in combination with AUTOSEQUENCE®s enables the user quick and simple testing of electrical devices.
- Testing groups: the instruments have built-in filters in accordance with their area of application, which enables the user simple choice of needed test sequences.
- Support for IC-CPD testing: support for testing Mode 2 and Mode 3 EV cables in combination with supported adapters.
- Support for PRCD testing: support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
- Fuse testing: the instrument has a special, integrated testing module for quick testing of all types of fuses.
- High-voltage testing (only MI 3365 F): the instrument enables insulation resistance measurement that has to be performed after repairs or maintenance of electrical devices.
- Testing of medical devices (only MI 3365 M): the instrument enables testing of medical devices in accordance with IEC/EN 62353 extended to tests in acc. with IEC 60601.
- Simulation of Single fault conditions enables testing of Audio/video, information and communication technology equipment IEC/EN 62368.
- Testing of welding equipment (only in combination with A 1422): all models of OmegaEE XD support testing of welding equipment in accordance with IEC/EN 60974-4.
- Hard-wired devices: the instruments have integrated additional test terminals that enable the user simple testing of hard-wired devices.
- Large memory: support for microSD memory cards, 8 GB card already integrated in the instrument, although that can be expanded to 32 GB.
- PC SW Metrel ES Manager: enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.

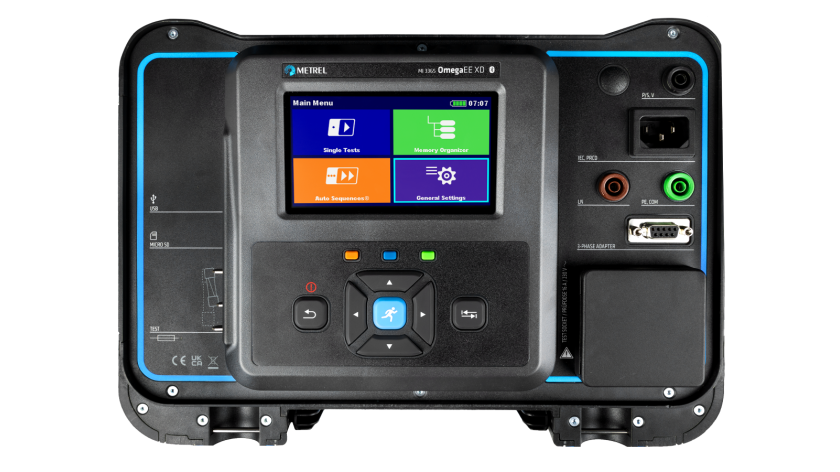

- Touch screen: high resolution colour touch screen, 4.3” TFT.
- Double manipulation: keyboard and touch screen enable the user to control the instrument in any manner they like.
- aMESM Android SW: enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.
Technical data
- Dimensions (w x h x l): 310 x 130 x 250 mm
- Weight (with batteries, without accessories): 6.1 kg
Applications
Portable and fixed appliances
- PAT measurements and management
Preventative maintenance
- Safety of portable appliances
Troubleshooting
- Appliances troubleshooting
Specifications
Downloads
Datasheet | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 3365 OmegaEE XD (25A, M, F) | en | 2023 | 14.11.2023 | 1.37 MB | |||
MI 3365 OmegaEE XD (25A, M, F) | en | 2024 | 19.02.2024 | Main features | 7.61 MB |
Manual | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 3365 OmegaEE XD (25A, M, F) | en | 1.3.4 | 12.09.2024 | 20753338 | 6.21 MB | Login | |
MI 3365 OmegaEE XD (25A, M, F) | uk | 1.4.5 | 07.11.2024 | 20753338 | 18.89 MB | Login |
DoC | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
UK Declaration of Conformity | uk | 02.09.2022 | QR code | External link | Unknown |
PC Software | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.25.1.56 | 24.10.2024 | Readme | zip | 440.8 MB | Login |
Android | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
SW 1204 RISK Calculator Android | Multi-Language | External link | Unknown |
Firmware | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 3365 OmegaEE XD (25A, M, F) | Multi-Language | 1.0.12.b0fb6e2c | 09.05.2024 | Readme | zip | 20.2 MB |
