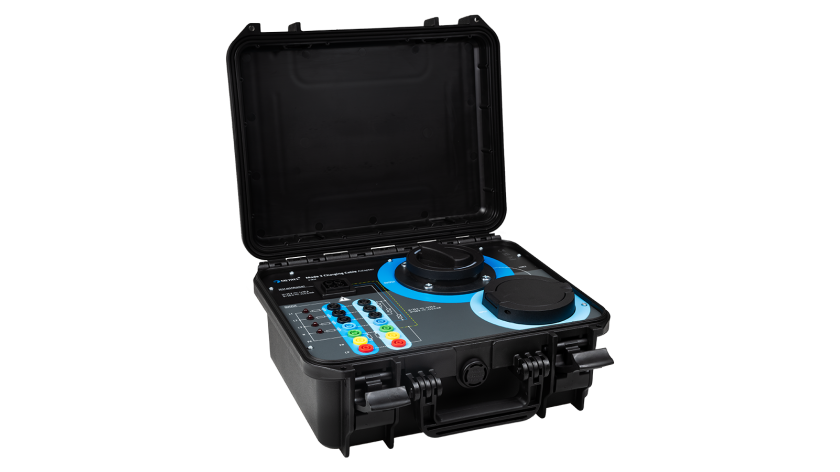

A 1832 Mode 3 Charging Cable Adapter New
Other Instruments / adapters / accessories
The A 1832 Mode 3 Charging cable adapter is used for electrical safety testing of Mode 3 EV charging cables with Type 2 connectors together with supported METREL or third-party testers. If used together with Metrel AUTOSEQUENCES®, integrated in the newer multifunctional testers, the EV charging cable can be comprehensively tested (including functionally) with a push of a button. It is possible to create a professional report using MESM software.
Do you own this product?
Which is the best for you?
Select a set

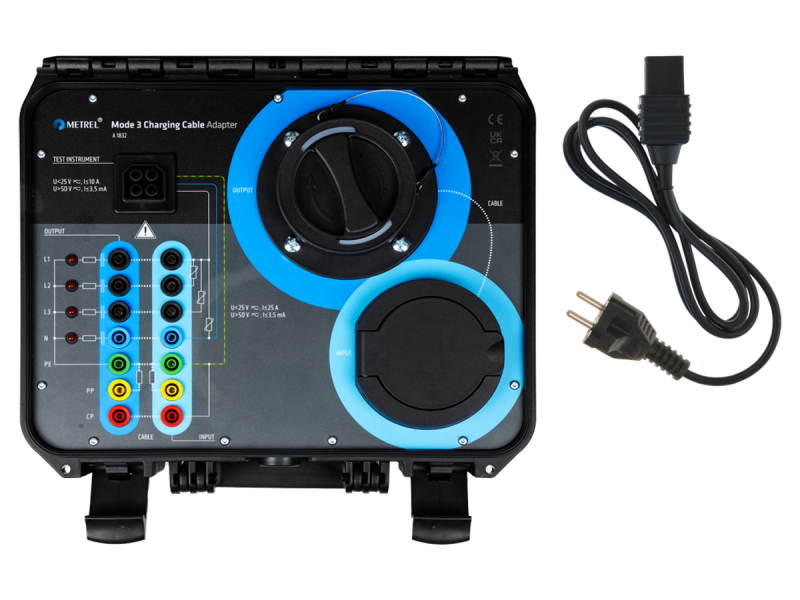

- Adapter A 1832 Mode 3 Charging Cable Adapter
- A 1053 Power cable L=1,5m BK 0,75mm2 Metrel connector/Schuko EU male
- Instruction manual
Videos
Corporate
Properties
Measuring functions

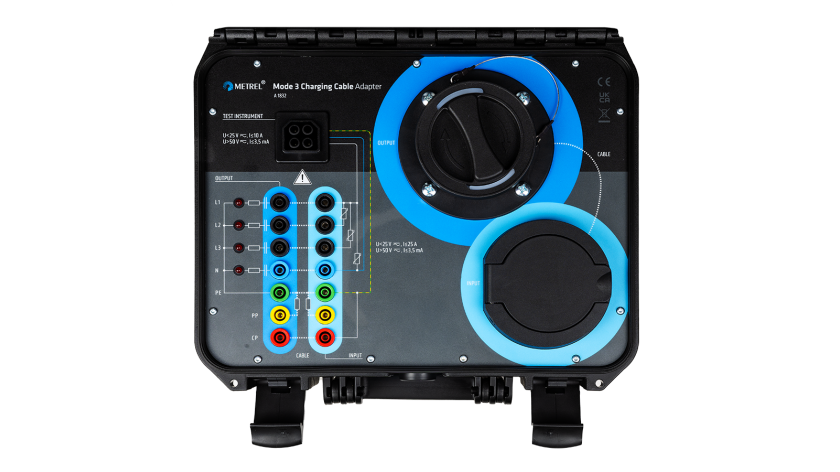

- Type 2 connectors enabling connection of Mode 3 EV charging cable;
- Banana sockets outputs for connection to a test instruments test leads;
- LED indicators for indication of continuity of phase conductors (L1, L2, L3, N);
- Test input for connection of test instrument, enabling execution of AutoSequences®;
- EV CABLES AUTO SEQUENCE® support;
- MESM report creation.
Technical data
- Dimensions (w x h x l): 300 x 150 x 340 mm
- Mass (without accessories): 3.16 kg
Specifications
Downloads
| DoC | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| EU Declaration of Conformity | Multi-Language | External link | Unknown |
|
