MI 3132 EV Tester New
eMobility

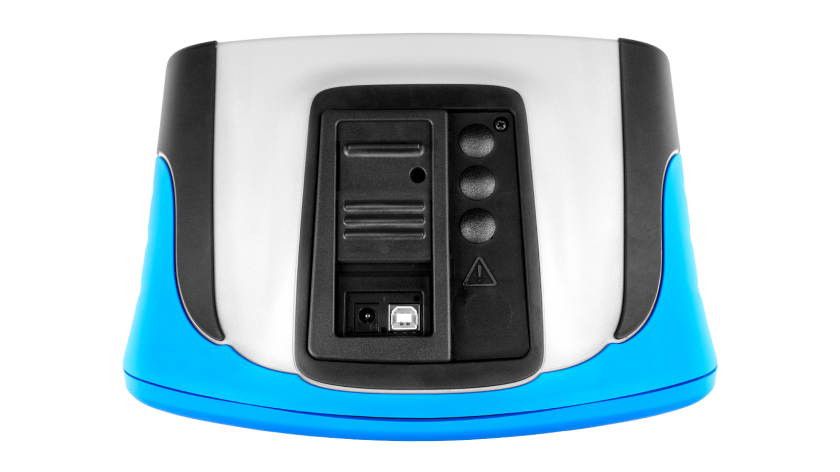

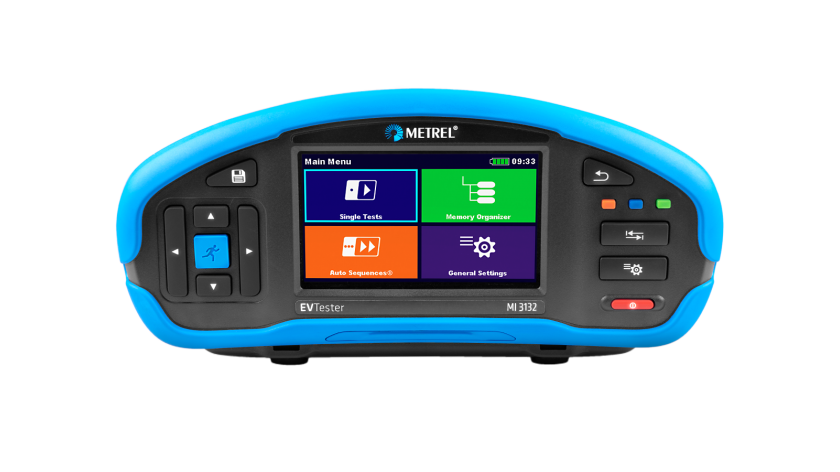

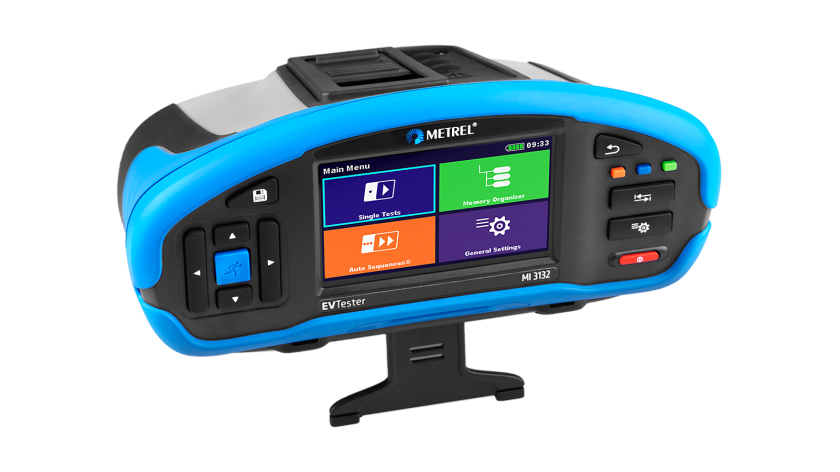

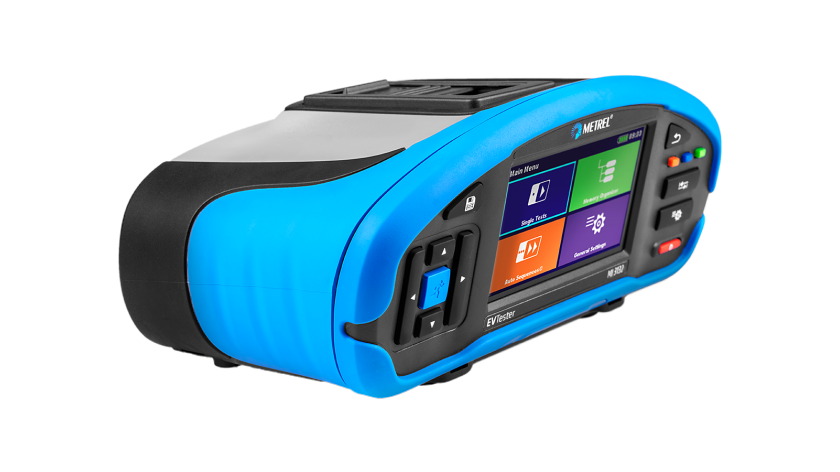

MI 3132 EV tester is a portable, battery powered test instrument with excellent IP protection and designed especially for electric vehicle testing. The instrument support the latest standard UN ECE R100 Annex 4A, 4B, intended for measurement of insulation resistance for electric vehicle. The instrument is ergonomic in design with intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. Besides those, the instrument supports a wide range of tests and measuring functions, including 2 A Micro Ohm measurement, on-line voltage monitoring, insulation test up to 1500 V, as well as functional and visual inspections.
Do you own this product?
Select a set

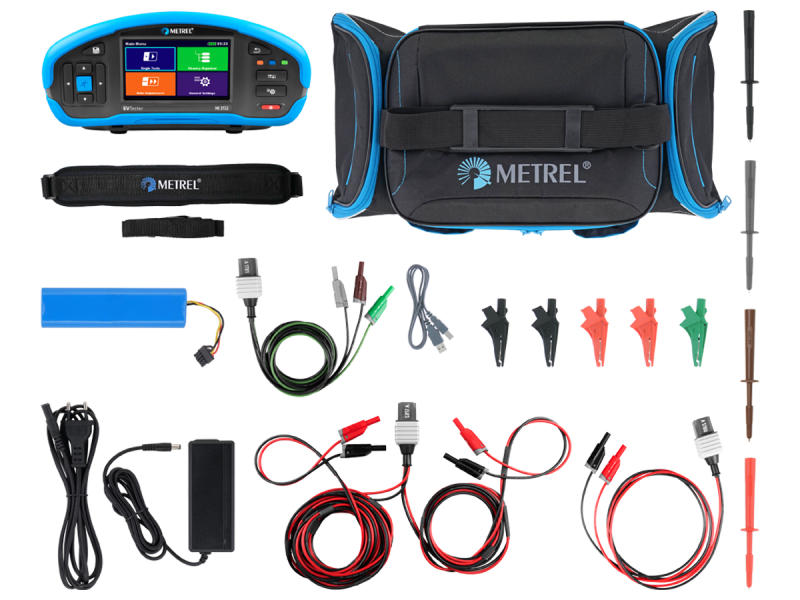

- Instrument MI 3132 EV Tester
- A 1551 Soft carrying bag
- A 1707 Set of carrying straps
- A 1782 4-wire test lead, 2 x 2 m, 2 x 5 m
- A 1781 3-wire test lead, 3 x 1.5 m
- A 1780 2-wire test lead, 2 x 1.5 m
- A 1014 Test probe, black
- A 1016 Test probe, red
- A 1298 Test probe, brown
- A 1453 Test probe, grey
- A 1013 Crocodile clip, black, 2 pcs
- A 1064 Crocodile clip, red , 2 pcs
- A 1309 Crocodile clip, green
- A 1727 USB cable
- A 1567 Li-ion battery pack, 7.2 V, 4400 mAh
- A 1569 Power supply adapter 12 V, 3 A
- Instruction manual (short version)
- Calibration Certificate
- SW 1201 PC SW Metrel ES Manager
Videos
Promotional
Event
Corporate
Standards applied
Mobile Units Electrical Safety
- UN ECE R 100 Uniform provisions concerning the approval of vehicles with regard to specific requirements for the electric power train [2015/505]
- ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Properties
Measuring functions
- Insulation measurements according to UN ECE R100 and ISO 6469-3 with own REESS as DC voltage source;
- Insulation resistance with DC voltage from 50 V to 1500 V;
- DC voltage measurement;
- TRMS voltage and frequency measurements;
- Four wire Micro Ohm measurements with
- 2 A DC test current;
- Low Ohm measurements with 7 mA and 200 mA DC test current;
- Visual safety and functional inspections.
Key features
- Insulation resistance measuring according to UN ECE R100 measuring using internal DC source;
- Performing accurate four wire measurements with Kelvin clamps and up to 2 A measuring current;
- Settable duration and current direction (unidirectional or bidirectional) in the Micro Ohm measurement;;
- Insulation range: wide range of insulation test voltages from 50 V to 1500 V, resistance measuring range up to 3 GΩ;
- Overvoltage category 1000 V CAT III;
- 4.3’’ colour LCD display with touch screen;
- Programmable AUTO SEQUENCEs;
- High degree of protection for outdoor use and rough environment;
- DC resistance measurements;
- Support for single or automated measurements;
- Built-in charger and rechargeable Li-Ion batteries as standard accessory;
- BT communication with PC, via built-in BT module;
- PC SW Metrel ES Manager for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing..
Technical data
- Dimensions (w x h x l): 252 x 111 x 165 mm.
- Mass (without accessories): 1.78 kg.
Applications
e-Mobility
- Electrtical Vehicles first safety inspection according to UN ECE R100
Preventative maintenance
- Voltage measurements
- Frequency measurements
- Battery systems
General purpose
- Industrial testing
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3132 EV Tester | en | 05.04.2023 | 354.03 KB |
|
