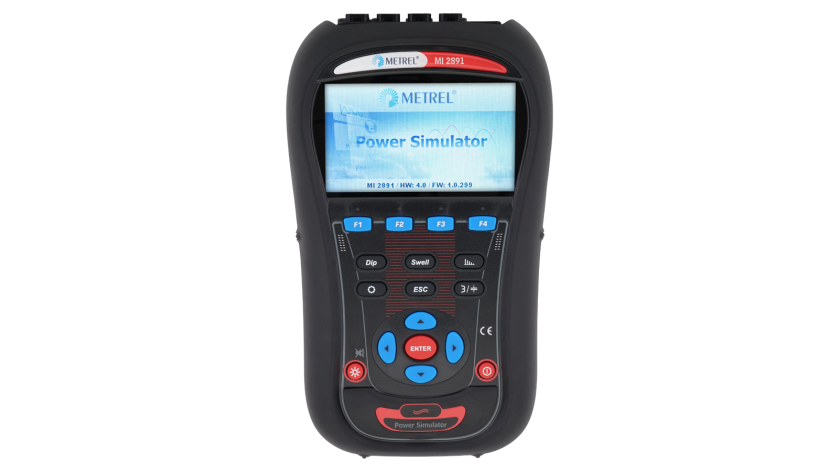

MI 2891 Power Simulator

Power calibrator/simulator

The MI 2891 Power Simulator is a multi-purpose three phase power simulator for simulating typical situations in low voltage power supply systems. It is an excellent tool for training, demonstration purposes, or as an electrical didactic tool. The simulator has some pre-programmed scenarios, and also the option of a complete manual mode. The user can decide between different Load character adjustments, adjustable current and voltage level with a simulation of varios different faulty conditions

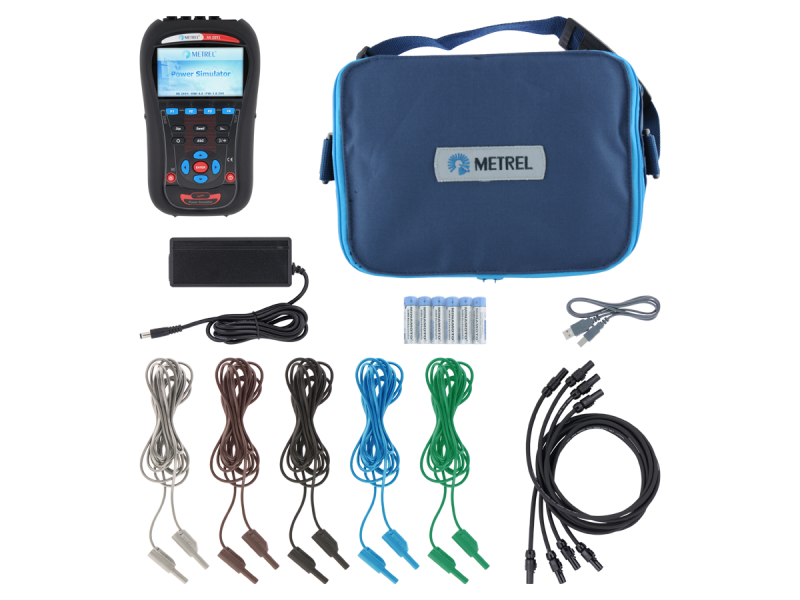

Select a set

Properties

Measuring functions

  • Voltage
  • Current
  • Frequency
  • Harmonics (U,I)
  • Phase angle (U,I)
  • Flicker
  • Phase sequence (U,I)

Key features

  • Simple and powerful waveform generator with various settings.
  • 4 voltage channels with wide simulation range: up to 350 Vrms.
  • 4 current channels with current clamps simulation up to 2 kA.
  • Simultaneous voltage and current (8 channels) simulation, 16 bit DA conversion for accurate signal generation,
  • Dip, swell, interrupt, signalling, transient and inrush events simulation.
  • Voltage and current harmonics waveform simulation.
  • Unbalanced voltage and current waveform simulation.
  • Square flicker simulation.
  • Various character load/character type combination simulation.
  • Thorough signal parameters settings.
  • Saving current system settings on power off.
  • 4.3’’ TFT colour display.

Technical data

  • Dimensions: 230 x 140 x 80 mm
  • Mass: 1,34 kg

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 2891 Power Simulator en 1.0 03.10.2016 pdf 383.95 KB
Manual Language Version Release Notes Type Size Download
MI 2891 Power Simulator en 1.2.3 21.11.2019 20 752 463 pdf 2.19 MB Login
DoC Language Version Release Notes Type Size Download
UK Declaration of Conformity uk 02.09.2022 QR code External link Unknown
