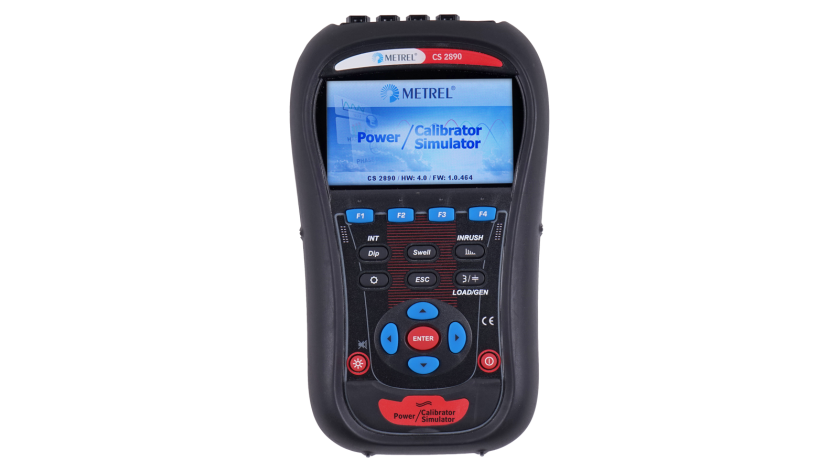

CS 2890 Power Calibrator / Simulator

Power calibrator/simulator

The CS 2890 Power Calibrator/Simulator is a handheld multifunctional four-phase instrument designed for calibrating and adjusting Metrel power quality Class A and Class S analysers as well as simulation of typical voltage and current power quality phenomena and situations on electrical networks.

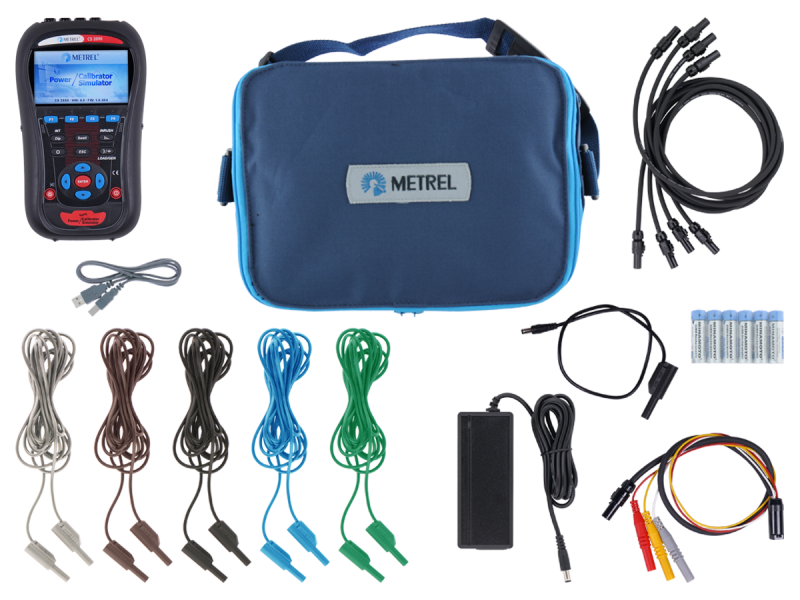

Select a set

Properties

Measuring functions

  • Simple and powerful waveform generator with various settings.
  • 4 voltage channels with wide simulation range: up to 350 Vrms.
  • 4 current channels with current clamps simulation up to 2000 A.
  • Simultaneous voltage and current (8 channels) simulation, 16-bit digital to analogue conversion for accurate signal generation.
  • Saving current system settings on power off.
  • 4.3’’ TFT colour display.
  • Calibration of Metrel Class A and Class S power quality devices.
  • Adjustment of Metrel Class A and Class S power quality devices.
  • Training purposes.
  • Demonstration of PQA testing equipment by sales personnel.
  • Education about power quality phenomena.

Key features

  • Voltage/current stability between the predefined calibration/adjustment points better than ±0.06 % under prescribed environmental conditions.
  • Fine adjustment of calibration points with substandard volt-meter control measurements.

Technical data

  • Dimensions: 230 x 140 x 80 mm
  • Mass: 1.36 kg

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
CS 2890 Power Calibrator / Simulator en 2019 19.02.2020 pdf 435.79 KB
Manual Language Version Release Notes Type Size Download
CS 2890 Power Calibrator Simulator en 1.3.1. 19.02.2020 20752950 pdf 4.7 MB Login
