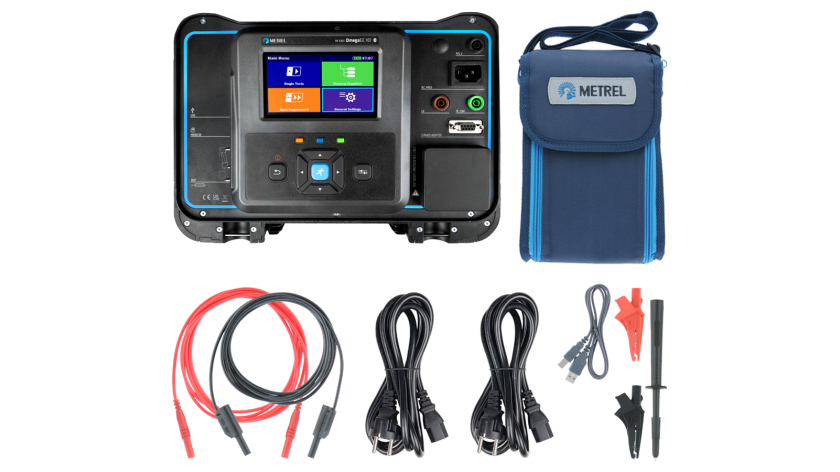

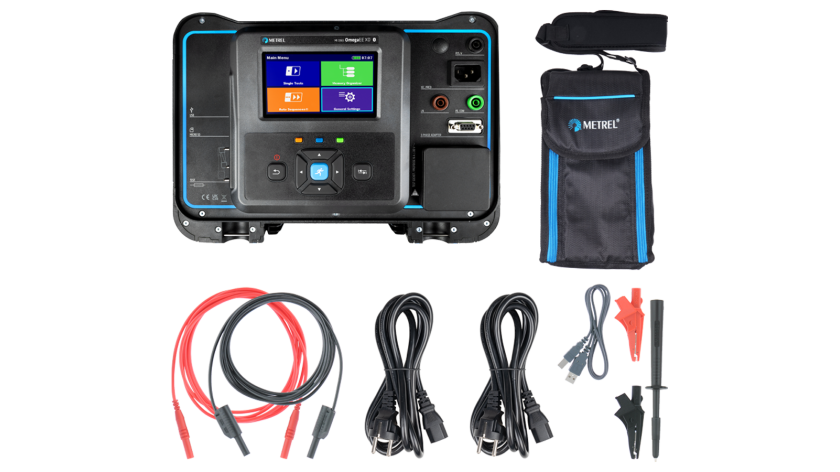

MI 3365 F Standardni set New
Sets
- Instrument MI 3365 F OmegaEE XD
- 2x A 1493 Power cable, 2m, 3x1.5mm2
- 1x A 1340 Test lead, Black, 1.5m, 2.5mm2
- 1x A 1014 Test probe, Black
- 1x A 1013 Crocodile clip, Black
- 1x A 1271 Soft carrying bag Size: S
- 1x A 1727 USB cable TypeA/B
- 1x A 1047 Test lead, Red, 2m, 0.75mm2
- 1x A 1064 Crocodile clip, Red
- Calibration certificate
- Short instruction manual
- Instruction manual*
- Metrel ES Manager BASIC Licence*
Do you own this product?
Optional accessories
P 1101 BASIC to PRO licence key upgrade for Metrel ES Manager
Licence key for upgrading the Metrel ES Manager to advanced version with professional report creation functionality.
A 1298 Test probe, brown
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1062 Test probe, green
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1297 Crocodile clip, brown
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1309 Crocodile clip, green
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1271 Carrying bag (S)
Small soft carrying bag for transport and storage of test instrument or accessories.
A 1207 Three phase adapter
The 3-phase adapter for substitute leakage current, insulation resistance and continuity measurements on electric loads equipped with 16A and 32A CEE 3P sockets.
S 2062 BT label printer set, (mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence. Printer supports printing of simple labels including PASS or FAIL status of result, Appliance name, ID number, User information and test date.
A 1268 Test probe, brush type, 4 mm
Test probe, brush type, assures good galvanic contact when measuring on revolving parts, flat surfaces, screw connections and similar. Equipped with standard 4 mm connector.
A 1388 Adapter Schuko / Schuko
Measuring adapter for leakage current measurements: for measuring differential leakage current, protective conductor current, neutral current and load current, through leakage current clamp. All wires are separated.
A 1389 Adapter CEE 5-P 16A / CEE 5-P 16A
Measuring adapter for leakage current measurements: for measuring differential leakage current, protective conductor current, neutral current and load current, through leakage current clamp. All wires are separated.
A 1390 Adapter CEE 5-P 32A / CEE 5-P 32A
Measuring adapter for leakage current measurements: for measuring differential leakage current, protective conductor current, neutral current and load current, through leakage current clamp. All wires are separated.
A 1488 BT Able printer, (battery or mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence.
A 1520 Labels for ABLE printer, (250 labels per roll)
Spare label roll for printer A 1488 and 1489, (250 labels per roll)
A 1573 NFC labels, fi 29 mm self-stick 50 pcs
NFC labels have sufficient memory space to store test results, test code and tested appliance information
A 1571 NFC reader / writer
NFC reader / writer allows to read and upload test results and information about tested electrical equipment to the NFC tags (NTAG 216).
A 1572 NFC tags, fi 34mm self-stick 50 pcs
NFC tags have sufficient memory space to store test results, test code and tested appliance information.
A 1574 NFC cable-tie, L 130 mm 50 pcs
NFC cable-ties have sufficient memory space to store test results, test code and tested appliance information
P 1301 M licence key for MI 3360, MI 3365 (Licence)
Licence key for unlocking medical device testing functionality (in accordance with EN 62353) on MI 3360 25A OmegaGT XA and MI 3365 25A Omega EE XD.
A 1579 Leakage current clamp
Current clamp with high resolution for accurate leakage current measurements.
A 1578 RS232 to USB adapter for external USB keyboard
The A 1578 adapter enables the connection of external USB keyboard, for easy data entering.
A 1550 Carrying bag (XXL)
Large soft carrying bag for transport and storage of test instrument and belonging accessories.
Technical data
- Dimensions: 170 x 640 x 330 mm
A 1610 Continuity test adapter
Continuity test adapter enabling point-to-point testing of earth continuity with 10 & 25 A test current.
A 1105 2D Barcode scanner 2D RS232 connection
2D Barcode scanner for identification of barcode labelled appliances.
A 1653 Barcode scanner (Bluetooth)
Barcode scanner for identification of barcode labelled appliances.
A 1694 Tip Commander 2,5 m
Tip Commander A 1694 enables remote controlled execution of tests on large test objects, where test probe is distanced from the test instrument. Consecutive measurements within test loop can be started or stopped with TEST button. Tip Commander A 1694 should only be used with MI 3360 series of METREL test instruments. Full functionality of A 1694 is supported in AUTOSEQUENCE® and Single tests.
