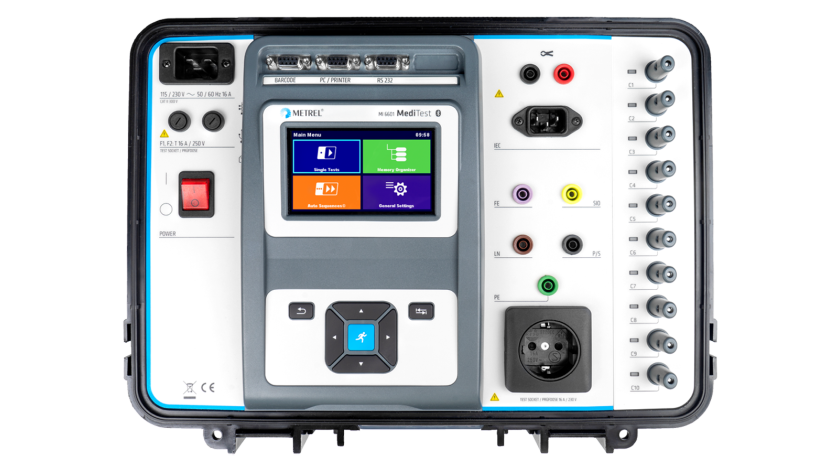

The MI 6601 MediTest is a new Metrel tester for testing the electrical safety of medical equipment in the accordance with the IEC/EN 60601 standard in any stage of medical equipment life cycle. It is accurate enough for development work, offers detailed measurements for type testing, it can be embedded into the production line and is portable enough for recurrent testing in accordance with IEC/EN 60601 or IEC/EN 62353. In addition it can help with diagnosing problems in service departments or can be used for troubleshooting in the field. The MI 6601 MediTest can be used as stand-alone tester without a PC or laptop in the field. For office and laboratory use, the tester can work in combination with Metrel Medical Electrical Safety Manager (MMESM). It supports creation and execution of test sequences in accordance with IEC/EN 60601 and asset management. Reports are created with integrated online services Metrel Cloud Reports and Metrel Cloud Storage. Compliance with IEC/EN 60601 is a widely accepted benchmark and a requirement for commercialisation of electrical medical equipment around the world. In Metrel we believe that our new MI 6601 MediTest is the fastest and easiest-to-use electrical safety compliance tester on the market, which entirely covers prescribed standard test procedures, without any compromises or simplifications.
Do you own this product?
Which is the best for you?
Select a set
Videos
Promotional
Corporate
Standards applied
Building LV Installation
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- EN 50699 Recurrent Test of Electrical Equipment
- EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
- AS / NZ 3760 In-service safety inspection and testing of electrical equipment
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Electrical Vehicle Supply Equipment
- IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles
Medical electrical equipment
- MEDe Competences: Medical Electrical Equipment Safety
- IEC/EN 62353 Medical electrical equipment - Recurrent test and test after repair of medical electrical equipment
- VDE 0751-1 (IEC/EN 62353) Medical electrical equipment - Recurrent test and test after repair of medical electrical equipment
- IEC/EN 60601 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Instrument safety towards user
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
- IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
Properties
Measuring functions
- PE resistance with 200 mAAC and 25 AAC;
- Insulation resistance with test voltage 250 VDC or 500 VDC.
- All test configurations acc. to IEC 62353 are supported;
- Leakage current measurements with 1 µA resolution;
- AC, DC and TRMS value of leakage currents;
- All leakage current measurements as defined in IEC 60601-1 standard (patient, auxiliary, earth, touch);
- All leakage current measurements as defined in IEC 62353 (equipment and applied part; alternative, direct, differential method);
- Measurement according to portable appliance standards EN 50678 and EN 50699;
- Point-to-point, touch and mains voltage tests;
- Equipment power;
- IEC lead test;
- Pre-set or configurable visual and functional inspections.
Key features
- The most complete IEC 60601 tester on the market;
- 10 universal configurable connections. They can be configured as applied parts, non-earthed parts, earthed parts;
- Dedicated test ports for connection to functional earthing and signal I/O connections;
- All possible configurations acc. to the IEC 60601 and IEC 62353 standards;
- Tests can be run on the instrument directly or via a PC;
- Fully automatic test flow with Auto Sequences®;
- Tests and limits are automatically set acc. to the set configuration of medical equipment;
- Test sequences are optimized for fastest work flow;
- Supports measuring by standards IEC/EN 60601 (2nd and 3rd editions), IEC/EN 62353, ANS/NZS 3551, EN 50678 and EN 50669;
- Use of single tests to diagnose problems easily;
- High current for testing continuity of PE connections: up to 25 A;
- AC and DC values of patient leakage and patient auxiliary current;
- Communication over USB, RS232 and Ethernet;
- Input data in any desired way: touchscreen, barcode/QR code scanner, wireless keyboard, PC SW;
- Optional printers or NFC writers for creating labels and tags;
- New subscription-based software solution including MMESM, Metrel Cloud Reports and Metrel Cloud storage;

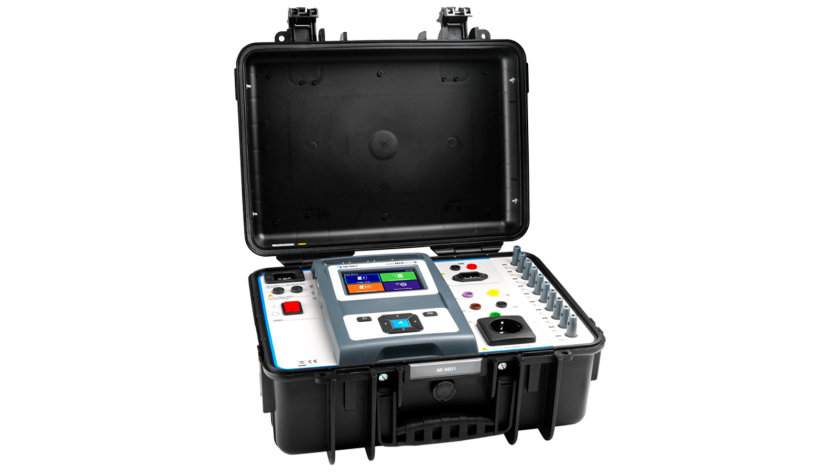

- IP 40 case open, IP 65 case closed;

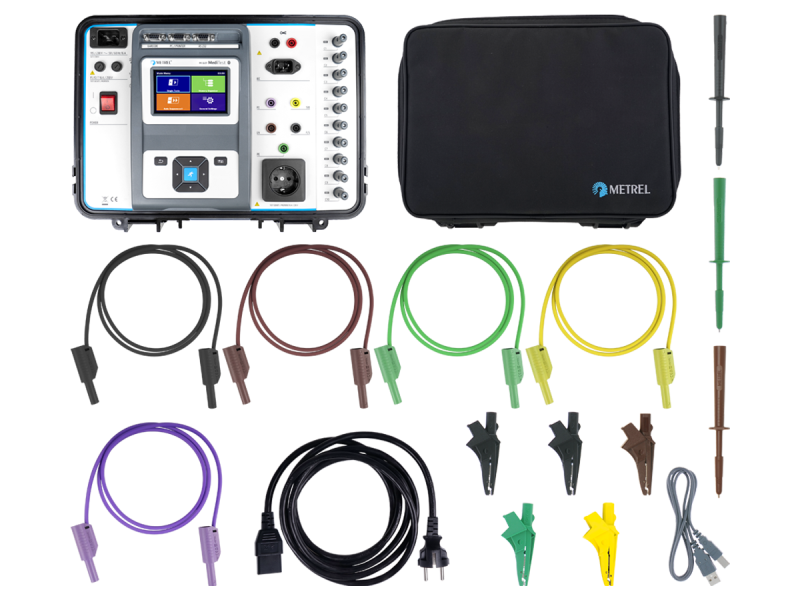

- Carrying case and bag for accessories;
- Standard warranty 2 years.
Technical data
- Dimensions (w x d x h): 42 cm x 33 cm x 18 cm.
- Mass (without accessories): 8.1 kg.
Applications
Portable and fixed appliances
- PAT measurements and management
Surgery rooms or operating theatres
- Medical devices
Preventative maintenance
- Safety of portable appliances
Troubleshooting
- Appliances troubleshooting
Specifications
Downloads
Datasheet | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 6601 MediTest | en | 2023 | 06.07.2023 | 921.44 KB |
Manual | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 6601 MediTest | en | 1.2.2 | 23.01.2024 | 20753214 | 3.57 MB | Login | |
SW 1405 Cloud Reports | en | 1.1.2 | 05.04.2024 | 20753344 | 1.12 MB | Login | |
SW 1404 Cloud Storage | en | 1.1.2 | 01.02.2024 | 20753346 | 2.2 MB | Login |
DoC | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
EU Declaration of Conformity | Multi-Language | 06.07.2023 | QR code | External link | Unknown |
PC Software | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
SW 1402 Metrel Medical Electrical Safety Manager (MMESM) | Multi-Language | 1.21.0.187 | 10.07.2023 | Readme | zip | 313.31 MB |
