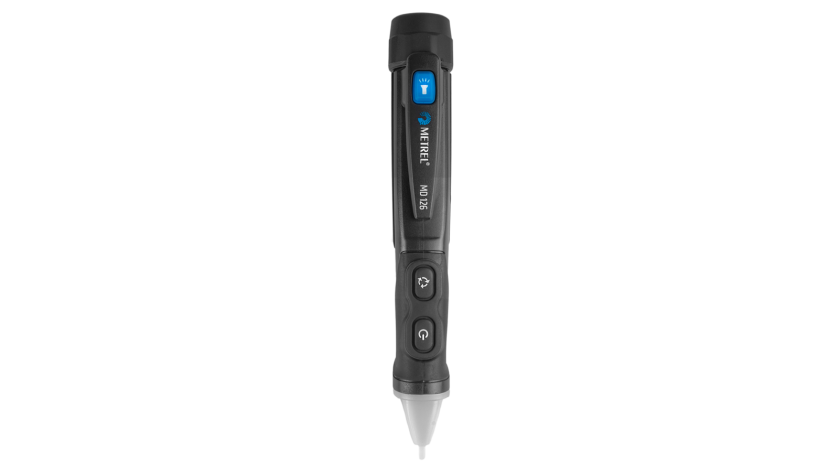

MD 126 Non-contact voltage and phase rotation detector
Non contact voltage detectors
Voltage detection is the most basic safety test. MD 126 offers a non-contact detection using coloured LED lights as indication. In a three phase system, the coloured lights indicate the phase system. A practical flash light completes the functionality. The housing is small and light with the IP 67 protection against water and dust, and 3 m drop test for robustness.
Do you own this product?

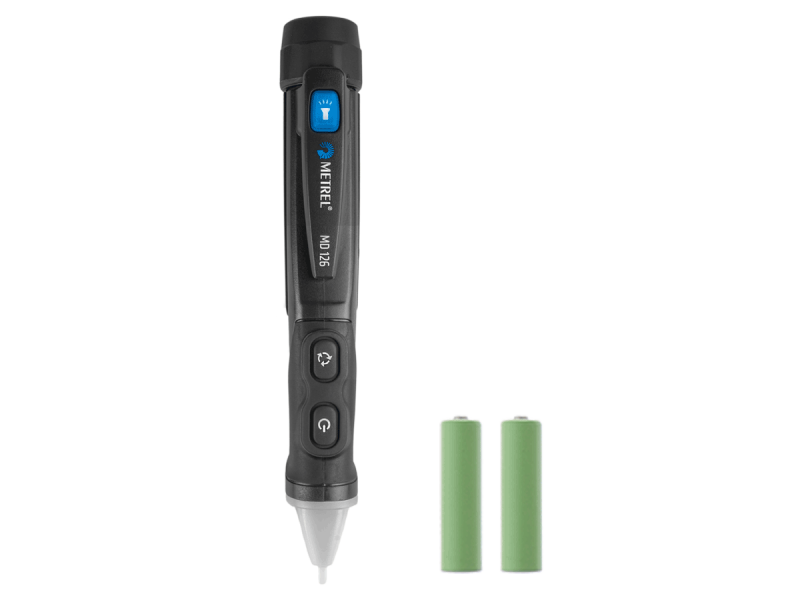

Select a set
- MD 126 Non-contact voltage and phase rotation detector
- 2 AAA 1.5V batteries
- Instruction manual
- Warranty
Properties
Measuring functions
- Voltage detection;
- Phase sequence detection.
Key features
- Measures both voltage presence and phase sequence;
- Wide measuring range 100-1000V;
- Robust housing with IP 67 and 3m drop test;
- Flash light;
- Sound and coloured light indication
Technical data
- Dimensions: 155 x 25 x 23 mm
- Mass (without accessories): 45.7 g
Applications
Troubleshooting
- Installation troubleshooting
- Voltage detection
- Phase sequence detection
- Field service
General purpose
- Industrial testing
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MD 126 Non contact voltage and phase rotation detector | en | 2022 | 04.03.2022 | 171.95 KB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MD 126 Non contact voltage and phase rotation detector | Multi-Language | 1.1.5 | 17.11.2022 | 20 753 242 | 429.2 KB |
