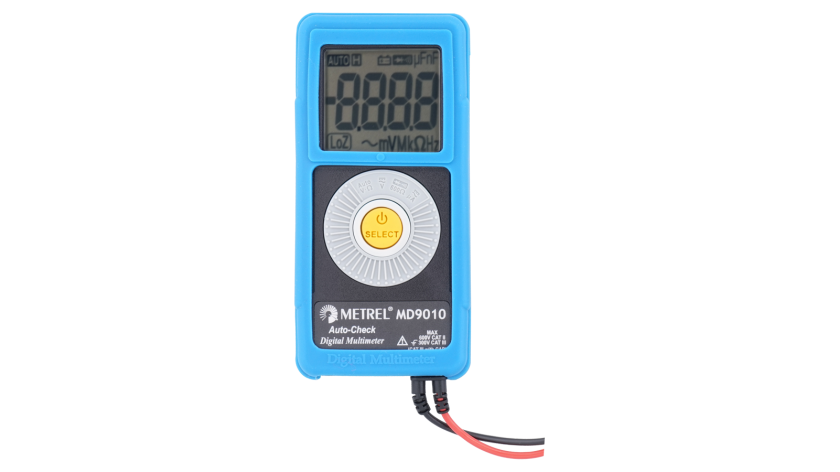

MD 9010 General Purpose Autocheck Digital Multimeter

Digital multimeters

The MD 9010 is one of the smallest and lightest digital multimeters for everyday use. A wide variety of possible applications, high accuracy, a large LCD display and extremely good value for money are key features of the digital multimeter.

Standards applied

Instrument safety towards user

  • EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC 61000-6-5:2015 Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
  • The Low Voltage Directive LVD 73/23/EEC Electrical equipment designed for use within certain voltage limits
  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-032 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held and hand-manipulated current sensors for electrical test and measurement
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Properties

Measuring functions

  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Frequency measurement;
  • Continuity test;
  • Electric field detection.

Key features

  • Autocheck function: automatic detection of AC voltage, DC voltage or resistance.
  • Auto-ranging: no need of manual ranging.
  • Pocket-sized: small, thin, ergonomic design.
  • Lightweight: 78 g only.
  • Acoustic signalling on continuity test.
  • EF detection: non-contact and probe-contact electric field detection.
  • Safe: protected against wrong connection and overvoltage (CAT III / 300 V and CAT II / 600 V).
  • Easy to read: LCD display, 3-5/6 digits, 6000 counts.

Technical data

  • Dimensions (w x h x l): 113 x 53 x 10,2 mm
  • Mass (without accessories): 78 g

Applications

Preventative maintenance

  • Voltage measurements
  • Current measurements
  • Frequency measurements

Troubleshooting

  • Appliances troubleshooting
  • Field service

General purpose

  • Home maintenance
  • Hobby work

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
MD 9010 General Purpose Autocheck Digital Multimeter en 2023 30.06.2023 pdf 373.29 KB
Manual Language Version Release Notes Type Size Download
MD 9010 Digitalmultimeter Multi-Language 2.1.8 22.12.2023 20 751 285 pdf 1.48 MB Login
