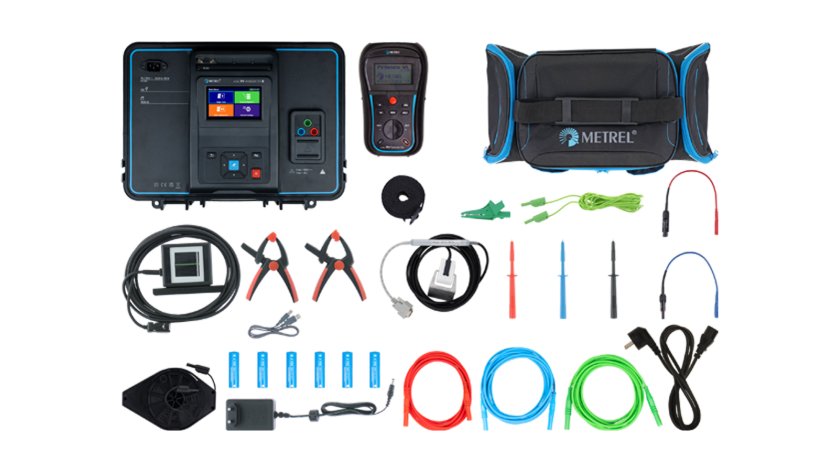

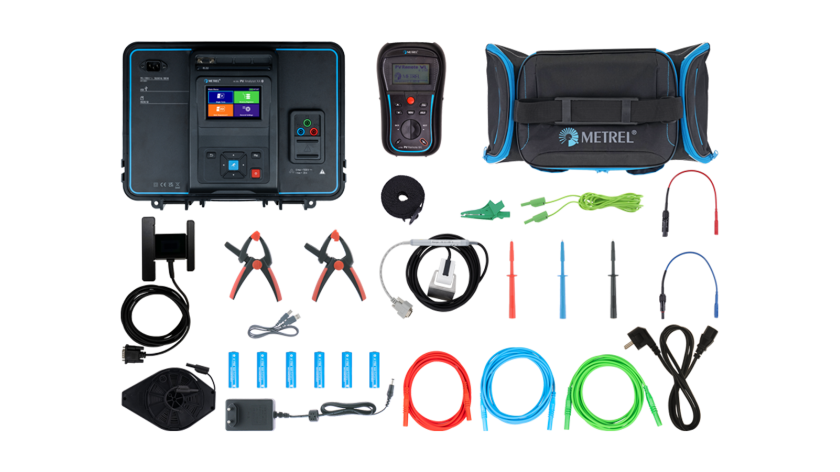

MI 3116 Standardni set
Sets
- Instrument MI 3116 PV AnalyserXA
- A 1785 PV Remote WL
- A 1833 PV temperature sensor

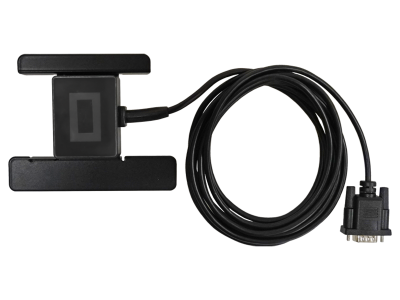

- A 1846 PV Reference cell V2
- 2x A 1835 Clamp for attaching accessories
- A 1840 MC4 Test lead, Blue, 1500 V
- A 1841 MC4 Test lead, Red, 1500 V
- A 1790 RED Test lead, Red, 3m, 2,5mm2
- A 1790 BLU Test lead, Blue, 3m, 2,5mm2
- A 1792 Test lead Green, 3m, 0,75mm2
- A 1509 Test lead, Black, 50m, 0,75mm2 – Reel
- A 1012 Test lead, Green, 4m, 0,75mm2
- A 1309 Crocodile clip, Green
- A 1014 Test probe, Black
- A 1015 Test probe, Blue
- A 1016 Test probe, Red
- A 1727 USB cable TypeA/B
- A 1728 Power cable, 2m, 3x0.75mm2
- A 1551 Soft padded carrying bag Size: L
- A 1548 Power supply 0,5A/12V*
- A 1791 Carrying strap with tightening buckle
- S 2080 Battery set, Type AA, 2100mAh - 6pcs
- Calibration certificate for MI 3116
- Calibration certificate for A 1785
- User Manual
- SW 1201 Metrel Electrical Safety Manager (MESM)
- P 1403 3-year Metrel Smart Cloud Pro subscription
Do you own this product?
Optional accessories
A 1552 Carrying bag (XL)
Large carrying bag for transport and storage of test instrument and all belonging standard set and euro set accessories.
Technical data
- Dimensions: 200 x 600 x 245 mm
A 1785 PV Remote WL
PV remote unit for measurement and logging of irradiance and temperature values with WiFi interface for communication with the main unit.
A 1835 Clamp for attaching accessories
Universal clamp for attaching different measurement accessories.
A 1836 Adapter for PV temperature sensor
Adapter for direct connection of the temperature sensor to instruments MI 3108 and MI 3109.
A 1837 Adapter for PV reference cell
Adapter for direct connection of the irradiation sensor to instruments MI 3108 and MI 3109.
A 1849 Communication cable, 1m, DB9/PS2
Optional accessory for MI 3088 PV demo board. For demos with PV Remote unit.
A 1850 Test cable, 1m, DB9/2x stack. ban. plug
Optional accessory for MI 3088 PV demo board. For demos with PV Remote unit.
A 1840 Test lead, Blue, 0.3m, MC4 Female/Banana socket- 1500V
Adapter MC4 Female to banana socket, 1500V DC, blue, for PV measurements on strings terminated with MC4 compatible connectors.
A 1841 Test lead, Red, 0.3m, MC4 Male/Banana socket - 1500V
Adapter MC4 Male to banana socket, 1500V DC, red, for PV measurements on strings terminated with MC4 compatible connectors.

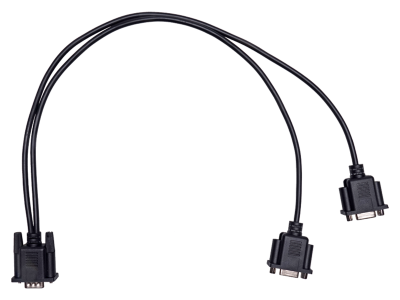

A 1847 Communication cable, 0.5m, 2xDB9 female/DB9 male
Communication cable, 0.5m, 2xDB9 female/DB9 male
