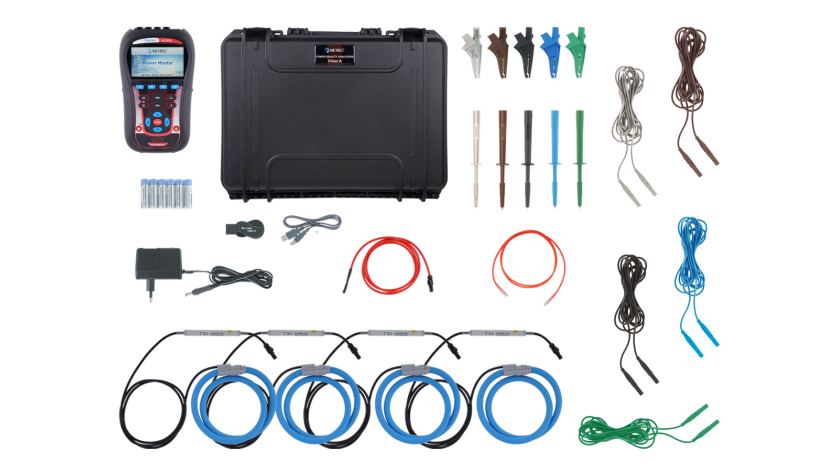

MI 2892 Euro set

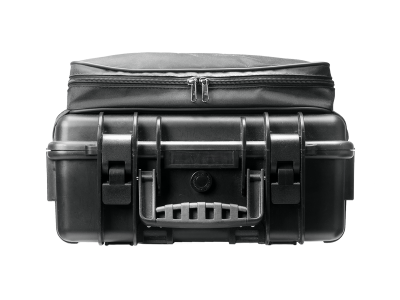

Small soft carrying bag for transport and storage of test instrument or accessories.



Technical data

• Dimensions: 280 x 160 x 110 mm

Move data between your computer and memory card with memory card reader.

High accuracy current clamp 1000 A / 1 V with jaw opening 52 mm and fixed 1.5 m cable for power measurements with Metrel power quality analysers.

3-phase transformer for power measurements on distribution panels with 5 A nominal output current.

Four ranges current clamp for measuring alternating currents in low and medium power installations. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the instrument.

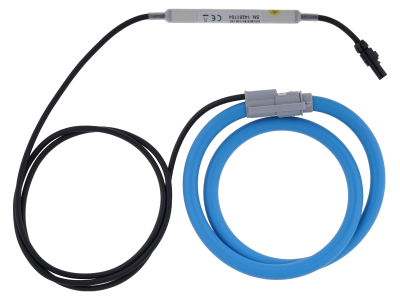

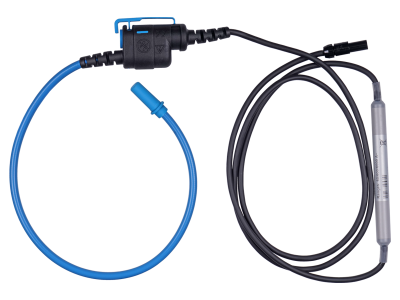

Single phase flexible current clamp with three selectable measuring ranges. Powered by alkaline or rechargeable batteries.

The PQA instrument, current clamps, wide range power supply, 3G/WiFi-Router and GPS are not included in the set.

Safety flat clamps assure good contact when connecting the test leads on busbars and other larger flat surfaces.

Single phase flexible current clamp with three selectable measuring ranges. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.

Single phase flexible current clamp with three selectable measuring ranges. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.

USB stick enables you to backup your data to a USB drive. This is a practical backup solution as it allows you to store recorded data files to external device, offering increased portability.

Single phase flexible current clamp with three selectable measuring ranges. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.

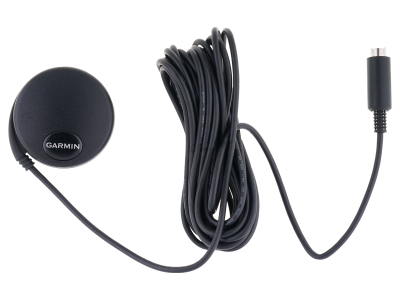

Waterproof, portable case, rated as an IP 65, for outdoor application of PQ instruments. This portable lockable case is intended to be used in combination with PQA instruments. It is designed to be used with wide range power supply A 1479, 3G/WiFi-Router A 1622 and a GPS receiver A 1355. The case includes standard voltage measurement cables for all voltage connections and 4 current probe adapter cables for connection to Metrel current clamps.



Technical data

• Dimensions: 420 x 325 x 250 mm
• Weight: 4.0 kg

Wide range power supply (Unom: 85V ÷ 650 Vac / 920 Vdc ) provide power supply directly from voltage measuring terminals. Applicable when standard electrical sockets are not available on measurement site.

AC / DC current clamp 40/300 A / 1 V with jaw opening 25 mm for power measurements. Requires A 1039 connection cable. Battery Life, 66 hours typical (Alkaline).

Temperature probe can be used for monitoring and recording of temperature trend at measuring objects, such as capacitors, motors, transformers, etc.

Single phase flexible current clamp with three selectable measuring ranges (25 cm loop). Does not require external power supply as it is powered by the measuring instrument.

Single phase flexible current clamp with three selectable measuring ranges (48 cm loop). Does not require external power supply as it is powered by the measuring instrument.

Single phase flexible current clamp with three selectable measuring ranges (90 cm loop). Does not require external power supply as it is powered by the measuring instrument.

Connection cable for connecting current clamps A 1122 on Metrel power quality analysers.

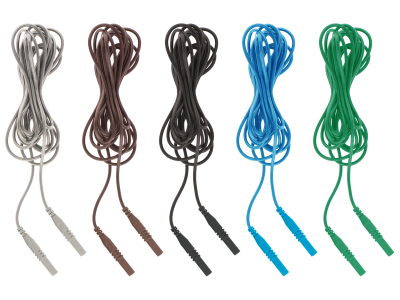

High quality measuring leads for use up to CAT III / 1000 V.

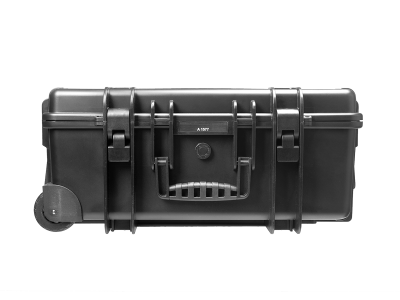

Professional protective waterproof carrying case with telescopic handle and smooth-running wheels, made from high-impact plastic intended for easiest transportation to testing place. Huge volume enables storage of all needed accessories. It also has an automatic pressure equalization valve to insure easy opening after altitude or temperature changes.



Technical data

• Dimensions: 610 x 430 x 265 mm
• Weight: 6.8 kg

High accuracy current clamp 0.5/5/50 A for precise current and power measurements including leakage current measurement.

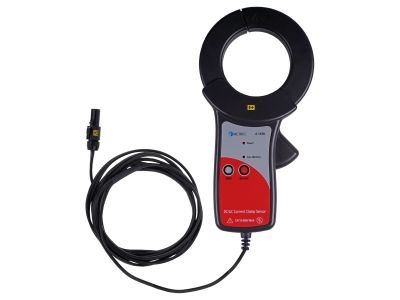

DC current clamp 1500 A; AC current clamp 1500 A with jaw opening 73 mm (ɸ 68 mm) for power measurements (photo voltaic).

Single phase smart flexible current clamp with three selectable measuring ranges Sensor length: 86 cm; max. conductor size: 540 mm. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.

Extension cable for current clamps A 1281.

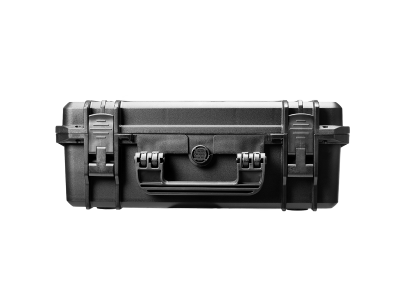

Professional protective waterproof carrying case, made from high-impact plastic. It also has an automatic pressure equalization valve to insure easy opening after altitude or temperature changes. Tough, yet lightweight, and entirely waterproof, this hard protective carrying case offer premium protection of Power Quality instruments.



Technical data

• Dimensions: 464 x 366 x 176 mm
• Weight: 3.0 kg

AC+DC current clamp 100/1000A / 1V with jaw opening 51mm, max. conductor size 52 mm for power measurements (photo voltaic). Battery operated 9V, battery life with 500 mAh approx. 75 hours, 1200mAh approx. 6 1/2 days. Requires A 1561 connection cable.

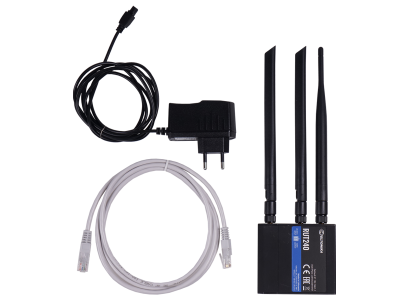

4G / Wi-Fi Router for remote instrument access.

Highly accurate iron current clamp for current (including leakage current) and power measurements with smart clamp technology (automatic recognition by the analyser), powered by the connected PQA, and designed for measuring alternating currents in low-power installations (up to 20 A).

Marking rings for marking current clamps with cable diameter between 5 – 6 mm

Marking rings for marking current clamps with cable diameter between 4 – 5 mm

Measuring cable with fuse to protect voltage inputs

High accuracy current clamp for precise current and power measurements.
