BUNDLE S 2110 Safety Test System with Light Curtain New
Sets

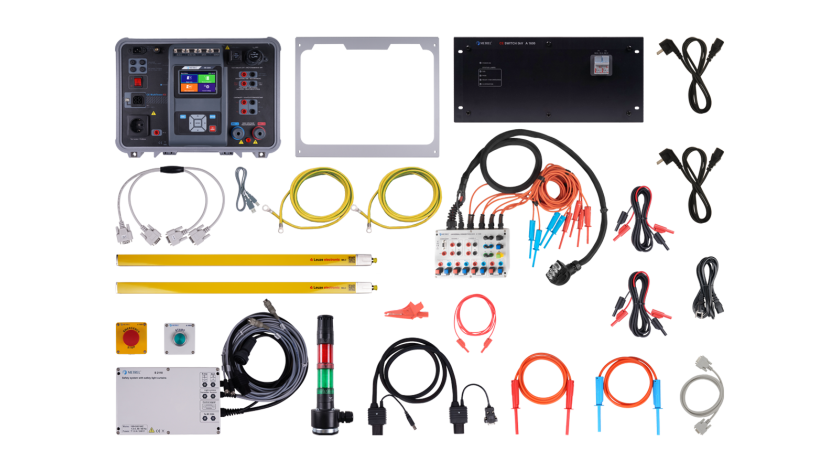

The Metrel Light Curtain Guarded Test System is designed for production environments requiring fast, frequent testing with a high level of operator safety. A safety light curtain continuously monitors the hazardous test area and immediately disconnects the measurement circuits and hazardous test voltages if the protected zone is interrupted. Testing can only start when the area is clear and all safety conditions are fulfilled, providing effective protection against accidental exposure while allowing fast and unobstructed access to the DUT. The solution integrates the MI 3394 CE MultiTester XS, A 1600 CE Switch 5 kV, configurable connection boxes, safety light curtains and visual warning indicators into a compact testing platform suitable for manual and semi-automated production lines.
- Instrument MI 3394 CE MultiTester XS
- A 1600 CE Switch, 5kV
- S 2110 Safety system with safety light curtains
- A 1688 Universal connection box
- A 1496 Warning lamp (led tower lamp 2), Magnet
- A 1584 Rack mount adapter for mi 3394 CE MultiTester XA
- A 1690 Start button
- A 1689 Stop button
- A 1017 RS232 communication cable
- 2x A 1728 Power cable, 2m, 3x0.75mm2
- A 1493 Power cable, 2m, 3x1.5mm2
- A 1645 XA Multifunctional test cable, 1.5m, MI 3394
- 2x A 1695 Ground cable, YEL/GRN, 2m, 2.5mm2
- A 1601 HV test lead, Red, 1.5m, 5kV
- A 1602 HV test lead, Blue, 1.5m, 5kV
- 2x A 1076 Test cable, BLK/RED, 2.5m, 2.5mm2/0.75mm2
- A 1710 Test lead, Red, 1.5m, 2.5mm2
- A 1064 Crocodile clip, Red
- A 1727 USB cable Type A/B
- A 1495 PL adapter for pedal and signal lamps
- Calibration certificate
- Short instruction manual
- Instruction manual
- Metrel ES Manager BASIC Licence
- SW 1201 Metrel ES Manager (program installation)
Do you own this product?
Optional accessories
P 1101 BASIC to PRO licence key upgrade for Metrel ES Manager
Licence key for upgrading the Metrel ES Manager to advanced version with professional report creation functionality.
A 1015 Test probe, blue
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1298 Test probe, brown
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1062 Test probe, green
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1014 Test probe, black
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1310 Crocodile clip, blue
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1297 Crocodile clip, brown
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1309 Crocodile clip, green
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1013 Crocodile clip, black
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1271 Carrying bag (S)
Small soft carrying bag for transport and storage of test instrument or accessories.
A 1016 Test probe, red
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1064 Crocodile clip, red
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
S 1072 Continuity test lead with crocodile clip, 2 x 2.5 m, 2 pcs
Extension test leads with protection shield and with crocodile clips for continuity testing with high test currents (10 A, 25 A).
A 1495 Remote control pedal
Remote control pedal is used for safe remote start of high voltage insulation test and additionally allows free hand operation of the worker.
A 1495 Standard set
- A 1495 Start/Stop pedal
- 1x A 1495 PL Adapter for Start/Stop pedal and signal lights
- Notes for pedal
A 1496 Warning lamp / 2-LED signal tower HV
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions for use with A 1460. If A 1496 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1497 Warning lamp / 4 LED’s signal tower with buzzer
Colour - LED signal tower with build-in buzzer visually and acoustically signalizes ongoing tests and test conditions for use with A 1460. If A 1497 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1499 External power supply 24V
If the LED tower lamp is used in combination with MI 3325 or MI 3394, the external power supply should be used.
S 2062 BT label printer set, (mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence. Printer supports printing of simple labels including PASS or FAIL status of result, Appliance name, ID number, User information and test date.
A 1268 Test probe, brush type, 4 mm
Test probe, brush type, assures good galvanic contact when measuring on revolving parts, flat surfaces, screw connections and similar. Equipped with standard 4 mm connector.
A 1520 Labels for ABLE printer, (250 labels per roll)
Spare label roll for printer A 1488 and 1489, (250 labels per roll)
A 1573 NFC labels, fi 29 mm self-stick 50 pcs
NFC labels have sufficient memory space to store test results, test code and tested appliance information
A 1511 2M5 Tip Commander 2,5 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1571 NFC reader / writer
NFC reader / writer allows to read and upload test results and information about tested electrical equipment to the NFC tags (NTAG 216).
A 1572 NFC tags, fi 34mm self-stick 50 pcs
NFC tags have sufficient memory space to store test results, test code and tested appliance information.
A 1574 NFC cable-tie, L 130 mm 50 pcs
NFC cable-ties have sufficient memory space to store test results, test code and tested appliance information
A 1578 RS232 to USB adapter for external USB keyboard
The A 1578 adapter enables the connection of external USB keyboard, for easy data entering.
A 1550 Carrying bag (XXL)
Large soft carrying bag for transport and storage of test instrument and belonging accessories.
Technical data
- Dimensions: 170 x 640 x 330 mm
A 1610 Continuity test adapter
Continuity test adapter enabling point-to-point testing of earth continuity with 10 & 25 A test current.
A 1511 10M Tip Commander 10 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1593 Large Kelvin test crocodile
Large robust Kelvin crocodile clip for accurate resistance measurements on larger objects.
A 1105 2D Barcode scanner 2D RS232 connection
2D Barcode scanner for identification of barcode labelled appliances.
A 1653 Barcode scanner (Bluetooth)
Barcode scanner for identification of barcode labelled appliances.
A 1496 MAG Warning lamp / 2-LED signal tower HV ready for magnetic mounting
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions.
P 1104 Metrel SDK (Licence)
SDK licence key for instrument integration with 3rd party SW. Please contact your local dealr for more information on how to order the licence key.
SW 1304 aMESM Android
The aMESM is an advanced electrical installation safety Testing tool for Android devices. It enables fast and simple data management of tested installations, as well as a quick overview of already performed tests. The Application enables the user to send results to the office before leaving the test site and enter and save data to the test instrument by using the smart phones’ keyboard. It enables creation of customer and test location database as well as adding text and pictures, videos or voice records to the specific position in the test structure. All these features enable the user faster and easier data handling.
