BUNDLE S 2109 Safety Test System with RFID New
Sets

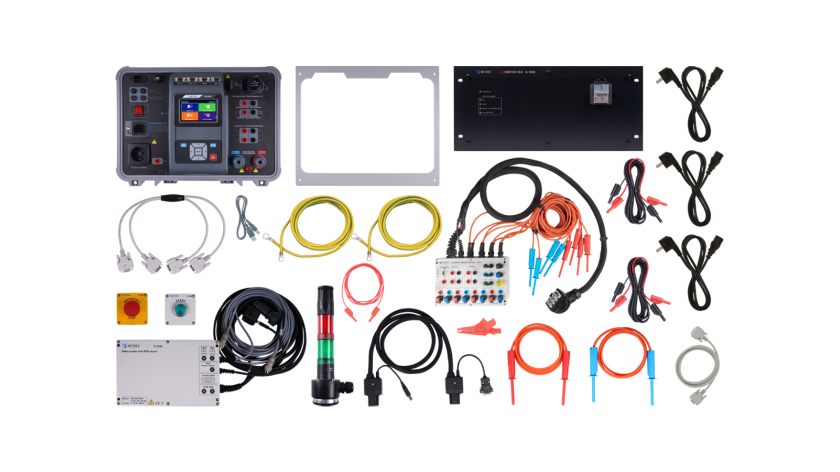

The Metrel Enclosed Safety Test System uses RFID-based safety technology to provide reliable and tamper-resistant monitoring of protective enclosure doors. The safety module ensures that testing can only start when all access doors are securely closed and the “cage closed” status is verified, providing automatic protection against direct contact with live parts. This concept is suitable for serial production, as well as workshop, repair and service applications where operator safety and repeatable testing are essential. The solution integrates the MI 3394 CE MultiTester XS, S 2109 safety module with RFID monitoring, A 1600 CE Switch for multi-channel HV and continuity testing, a dedicated connection box and visual warning indicators into a complete enclosed test station.
- Instrument MI 3394 CE MultiTester XS
- A 1600 CE Switch, 5kV
- S 2109 Safety system with RFID sensor
- A 1688 Universal connection box
- A 1496 Warning lamp (led tower lamp 2), Magnet
- A 1584 Rack mount adapter for mi 3394 CE MultiTester XA
- A 1690 Start button
- A 1689 Stop button
- A 1017 RS232 communication cable
- 2x A 1728 Power cable, 2m, 3x0.75mm2
- A 1493 Power cable, 2m, 3x1.5mm2
- A 1645 XA Multifunctional test cable, 1.5m, MI 3394
- 2x A 1695 Ground cable, YEL/GRN, 2m, 2.5mm2
- A 1601 HV test lead, Red, 1.5m, 5kV
- A 1602 HV test lead, Blue, 1.5m, 5kV
- 2x A 1076 Test cable, BLK/RED, 2.5m, 2.5mm2/0.75mm2
- A 1710 Test lead, Red, 1.5m, 2.5mm2
- A 1064 Crocodile clip, Red
- A 1727 USB cable Type A/B
- A 1495 PL adapter for pedal and signal lamps
- Calibration certificate
- Short instruction manual
- Instruction manual*
- Metrel ES Manager BASIC Licence*
- SW 1201 Metrel ES Manager (program installation)
