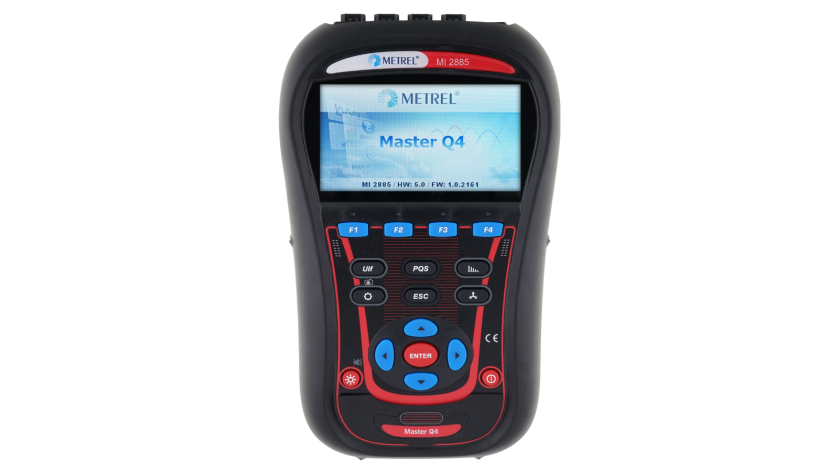

MI 2885 Master Q4 Featured

Class S power quality analysers

The MI 2885 Master Q4 is an ideal troubleshooting tool. The recorders are designed to automatically record all important data and waveforms of voltage events like Dips and Swells. In addition the user can set 7 optional triggers for capturing waveforms of selected quantities. A large easy-to-read graphical colour display enabling the user to detect harmonics, phasors and waveforms anomalies in the installation simply by connecting the device. The handy Quick Set buttons makes the instrument more user friendly and are allowing faster data overview. The instrument is designed for a long term recording as well as for troubleshooting power quality problems in three-phase and single-phase power distribution systems. Advanced PC SW package PowerView3 enables detailed analysis of recorded data, direct reading from the microSD memory card, analysis of long term records and automatic creation of professional test report.

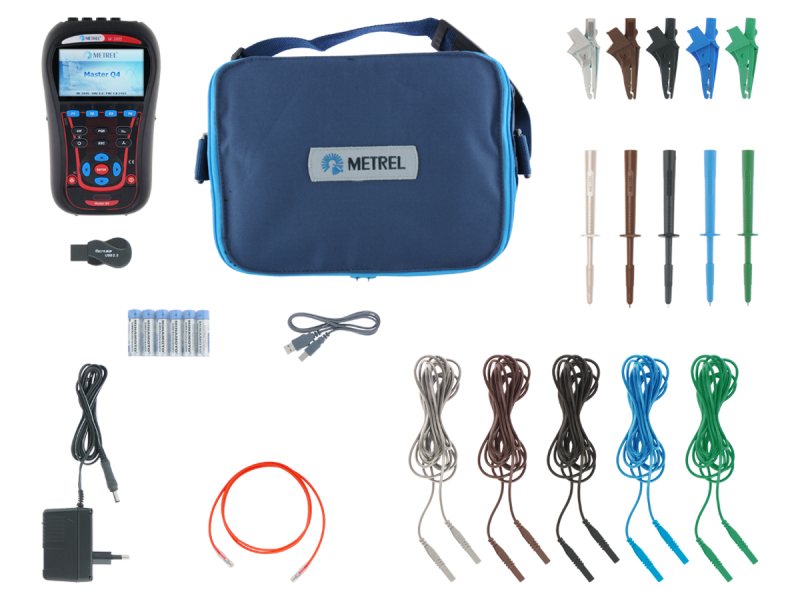

Select a set

Standards applied

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61000-4-15 Electromagnetic compatibility (EMC) – Part 4: Testing and measurement techniques – Section 15: Flickermeter – Functional and design specifications
  • IEC/EN 61000-4-30 Ed. 3.0 Electromagnetic compatibility (EMC) – Part 4-30: Testing and measurement techniques – Power quality measurement methods
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
  • IEEE 1459-2010 IEEE Standard Definitions for the Measurement of Electric Power Quantities Under Sinusoidal, Nonsinusoidal, Balanced, or Unbalanced Conditions
  • GOST 33073-2014 Electric energy. Electromagnetic compatibility of technical equipment. Control and monitoring of electric power quality in the public power supply systems
  • GOST R 54149: 2010 Electric energy. lectromagnetic compatibility of technical equipment. Power quality limits in the public power supply systems
  • IEEE 519 Recommended Practice and Requirements for Harmonic Control in Electric Power Systems
  • EN 50160 Voltage characteristics of electricity supplied by public distribution networks

Instrument safety towards user

  • EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields

Properties

Measuring functions

  • Voltage: TRMS, peak, crest factor (4-channel);
  • Current: TRMS, peak, crest factor (4-channel);
  • Power (active, reactive, apparent);
  • Power measurements fully compliant with IEEE 1459 (active, non active, fundamen­tal, harmonic, load unbalance) and classic (vector or arithmetic) method;
  • VFD (Variable Frequency Drives);
  • Unbalance, flicker measurement;
  • Harmonic and interharmonic analysis up to 50th harmonics, THD measurement;
  • Energy (active, reactive, generated, consumed);
  • Capturing and recording of power supply events (shutdowns, interruptions, swells, dips);
  • Inrush currents monitoring and recording;
  • Waveform/inrush displaying, snapshot and recording;
  • Power quality analysis according to EN 50160, IEEE 519; ;
  • Recording up to 7 adjustable alarms;
  • Temperature measurement;
  • Power factor cos fi.

Key features

  • 4-voltage channels with wide measurement range: 0 ... 1000 Vrms (CAT III / 1000 V);
  • 4-current channels with support for automatic clamp recognition and “on instrument“ range selection;
  • Automatic Smart Clamp detection and Smart Clamp range selection;
  • Compliance with power quality standard IEC 61000-4-30 Class S;
  • Complete power quality analysis according to EN 50160 including signalling and interharmonics;
  • Support for microSD memory card (8-GB supplied with the instrument) up to 32 GB;
  • Color-coded input terminals and termi­nal labels to suit your application region;
  • Intuitive main menu and large icons that makes the equipment very easy to navigate and configure;
  • Current clamp auto range selection;
  • Powerful PC SW PowerView3 enables downloading, view, analysis of recorded data and professional report creation;

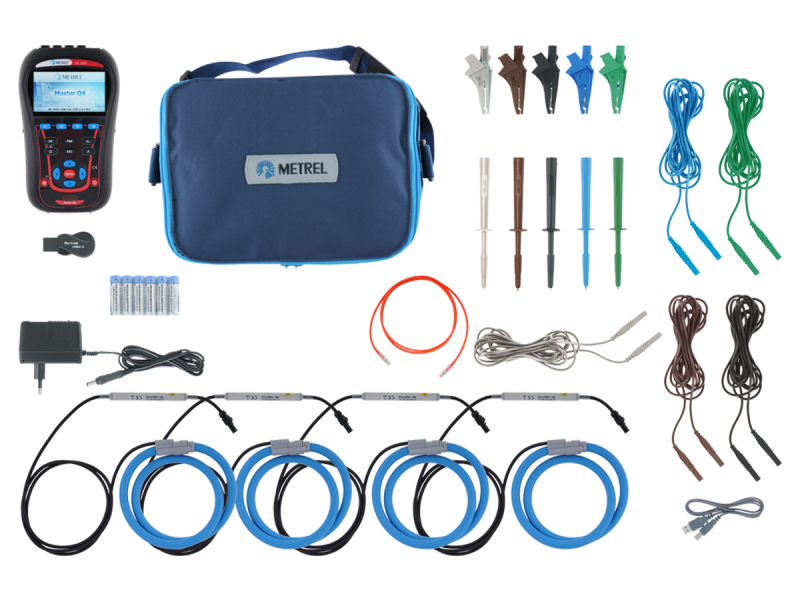

  • Flexible clamps (without additional power supply) are included in the Euro set;
  • Remote communication via Ethernet (GPS clock synchronization - optional).

Software

PowerView PC SW platform contains a package of functionalities needed for profund evaluation of power quality phenomena and creation of complex reports like:

  • Data download
  • Predefined EN 50160 power quality test report
  • Data merge
  • Transfer of test data to other applications (MS Excel, MS Word, etc.)
  • Filtering of recorded data
  • Tool for repairing of downloaded results to prevent loss of data during transmission

Technical data

  • Dimensions: 230 x 140 x 80 mm
  • Mass: 1 kg

Applications

Power generation

  • Power quality analysis in medium voltage facilities

Renewable energy sources

  • Generator stator testing

Low voltage power quality

  • Uninterruptible power supply
  • Power quality reports
  • Effects of power quality issues on living and working environment

Power supply and power distribution

  • Power quality
  • Uninterruptible power supply in healthcare
