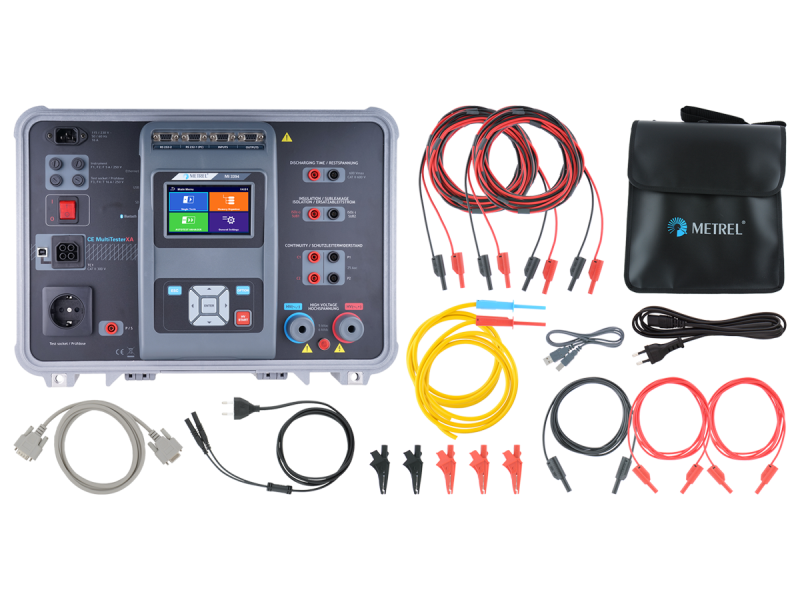

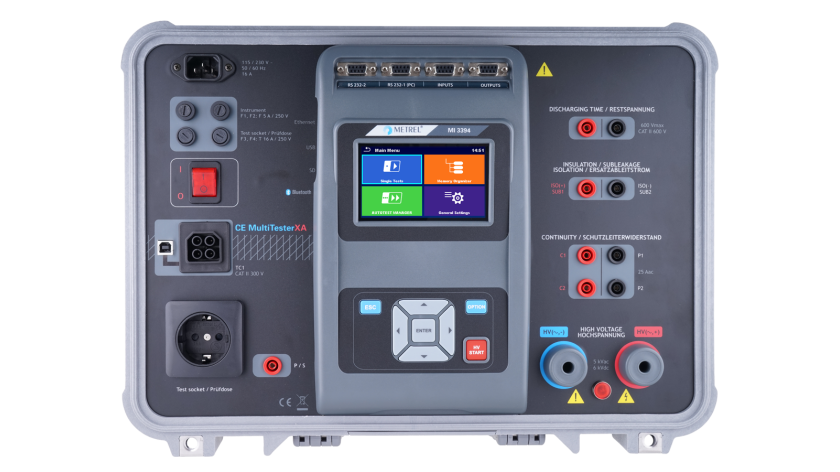

MI 3394 ST CE MultiTesterXA

Machine and switchboard testers

The MI 3394 CE MultiTesterXA is a portable instrument intended for electrical safety testing and CE certification of electrical appliances, machines and switchboards during the production. The instrument features in strong data management facility enabling the user to create custom auto-tests with predefined limits for pass/fail evaluation, to import predefined structure including test sequences or complete projects from PC software, plus strong memory organizer. The PC software MES-Manager enables the upload of automated test sequences, projects, downloading of test results to the PC, automatic data storage into a file, printing of test reports. Due to selected test functions, durable construction and accompanying PC SW package CE MultiTesterXA is the perfect instrument for electrical safety testing in the most demanding environments like laboratories, automated production lines or specialized workshops.

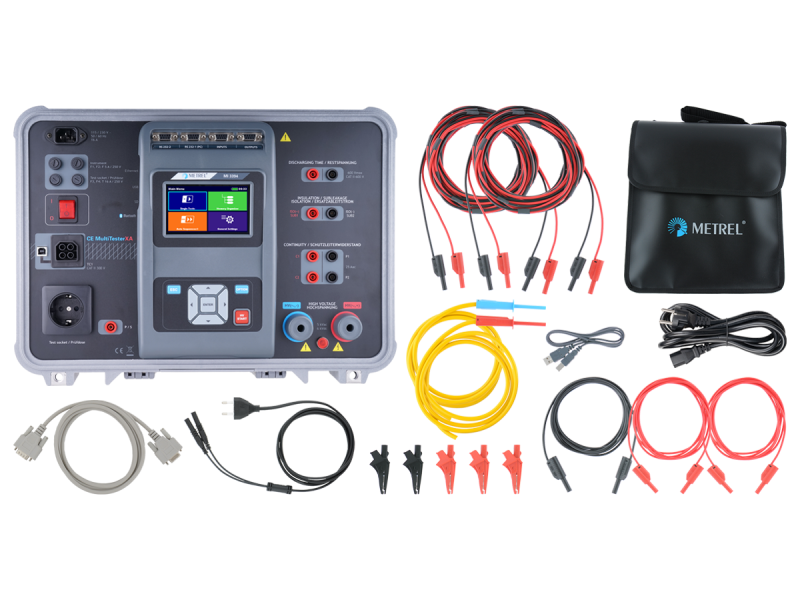

Sets

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 60950 Information technology equipment – Safety

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • IEC/EN 60335-1 Household and similar electrical appliances - Safety
  • IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits

Properties

Measuring functions

  • High Voltage, programmed (AC/DC).
  • High Voltage, burn test (optional A 1560)
  • Continuity tests.
  • Insulation resistance measurement.
  • Substitute leakage current.
  • Differential leakage current.
  • Touch leakage current.
  • PE-leakage current.
  • Discharge time.
  • Functional test (power P/S/Q, voltage, current, cos fi, frequency, ThdU, ThdI,PF).

Key features

  • Data management: the instrument features in unique user friendly data management facility and state of the art memory organizer.
  • Multiple test terminals: different test terminals enabling the user to choose from performing single tests or autosequences from single test socket.
  • MicroSD: support for microSD memory card (8-GB supplied with the instrument) up to 32GB.
  • Colour display: 3.4˝colour LCD display with touch screen.
  • Hi-pot: high voltage AC (5kV at 500VA) and DC (6kV) test.
  • Continuity: 4 – wire continuity test with selectable test current (0.2 A, 4 A, 10A, 25A) enabling precise measurements.
  • Communication: 4 – RS232, USB, Ethernet and Bluetooth communication ports enabling downloading, uploading and remote control over instrument.
  • Multi-system testing: the instrument can be used on TT, TN, IT and 115 V supply systems.

Technical data

  • Dimensions (w x h x l): 43,5 x 29,2 x 15,5 cm
  • Mass (without accessories): 17 kg

Applications

Preventative maintenance

  • Safety of portable appliances

Specifications

Downloads

Download Name Language Version Release Notes Type Size Online Download
PC Software SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.17.0.6962 02.07.2021 Readme zip 307.51 MB Login
Android SW 1304 aMESM Android en 04.01.2021 QR code External link Unknown

Videos

MI 3394 CE MultiTesterXA promotional video (part 1)

First look at the many functionalities of our top-of-the-line electrical safety multitester.
