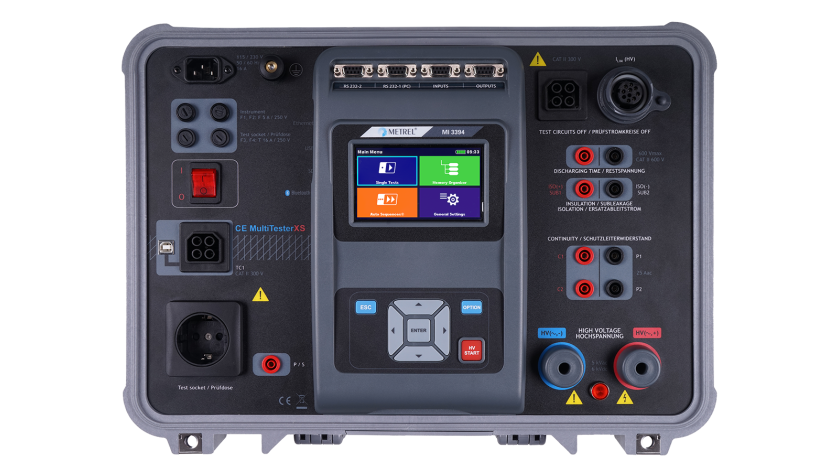

MI 3394 CE MultiTesterXS
End-of-line safety testing in production
The MI 3394 CE MultiTester XS is a multi-functional test instrument that includes all features of CE MultiTester XA instrument, the instrument is intended for electrical equipment safety testing. It can be used in all kinds of applications such as type testing, in-line testing, maintenance testing, testing after repair, periodic (recurrent) testing. The XS (Extended Safety) version of the instrument is specially designed to supports connection of different safety modules for independent control of dangerous measuring circuits and/or limitation of output current. Supported safety modules make the instrument safer to use (up to Ple or SIL 3) and consequently ready for integration into production lines.
Do you own this product?
Which is the best for you?

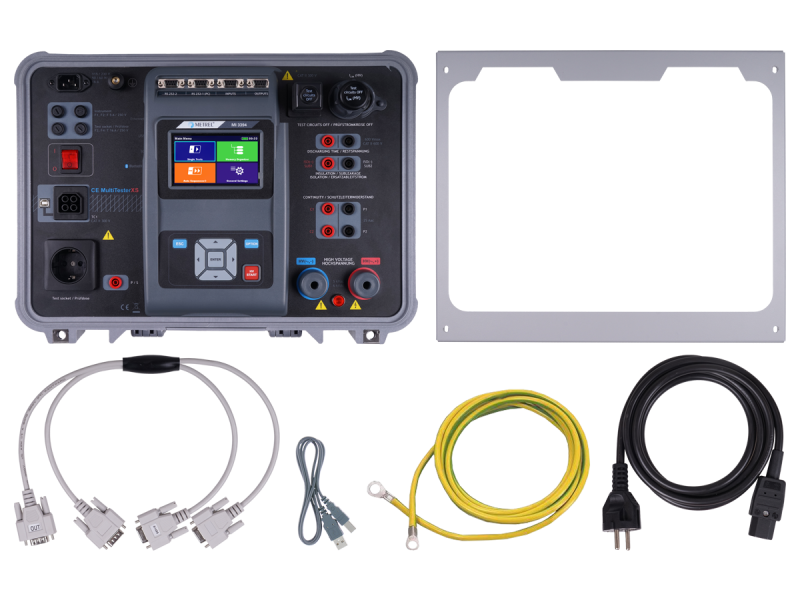

Select a set
- MI 3394 CE MultiTesterXS
- A 1584 19” Rack mount adapter for MI 3394 CE MultiTesterXA/XS
- A 1493 Mains cable EU13 / Schuko, 3 x 1.5 mm2, 2 m
- A 1695 Grounding cable, 2 m
- A 1495 P/L Adapter for connection of I/O signals
- A 1727 Cable USB, type AB, 1 m
Videos
Promotional
Demonstration
Standards applied
Building LV Installation
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- EN 50699 Recurrent Test of Electrical Equipment
- EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
- IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Properties
Measuring functions
- Control of measuring circuits with help of Safety sets;
- Support for CE Switch 5 kV;
- Limitation of current in HV test to safe level in combination with Safety sets;
- Perfectly suited for use in working places according to EN 50191.
Applications
Low voltage electrical installation safety
- Switchboards and automatic trip-out protection
Machines safety
- Machines and fixed connected loads safety
End-of-line safety testing in production
- Test station with automatic protection using RFID sensor safety module S 2109
- Test station with automatic protection using light barrier sensor S 2110
- Test station without automatic protection using two hands control device S 2111
- Test station where test current for withstanding HV test does not exceed 3mA (S 2115)
Preventative maintenance
- Safety of portable appliances
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3394 CE MultiTester XS | en | 2021 | 04.03.2022 | 731.61 KB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MI 3394 CE MultiTesterXS | en | 1.3.4. | 04.03.2022 | 20753061 | 4.9 MB |
