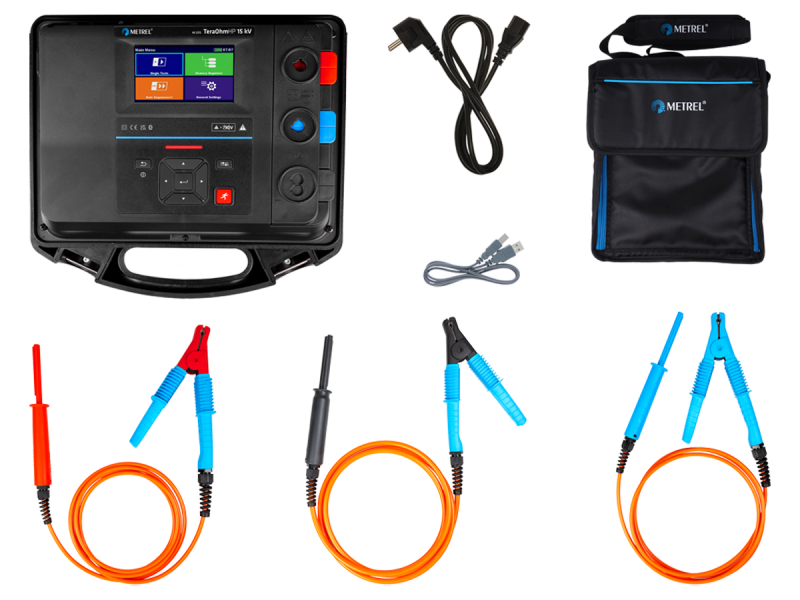

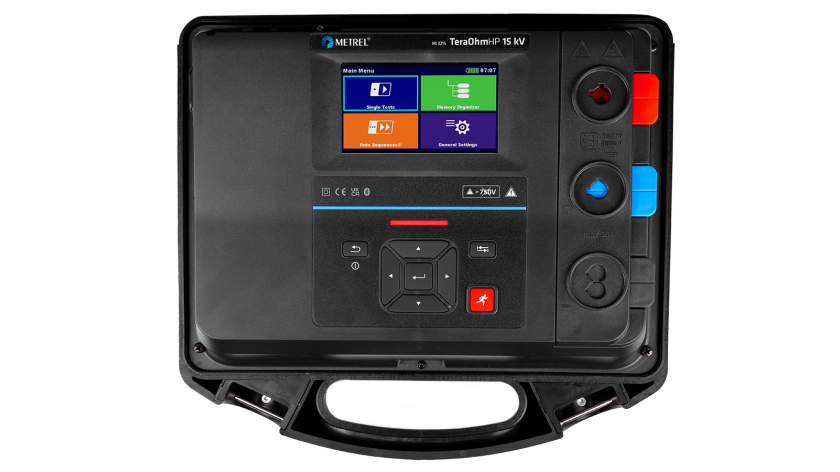

The MI 3215 TeraOhmHP 15 kV is a high power, portable, battery or mains powered test instrument with excellent IP protection (IP65), designed for analysing insulation resistance by using high DC test voltages of up to 15 kV. Because of its robustness (CAT IV measuring category) and high immunity to radiated EM fields, it is best suited for demanding industrial environments. Touch screen or key manipulation via menu-driven LCD enables easy and transparent selection of different measurement methods and easy entry of data. Newly designed test leads have coded banana connectors for proper connection and locking to protect them against unwanted or accidental removal.
Do you own this product?
Select a set
Videos
Promotional
Standards applied
Instrument safety towards user
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
- IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
- IEC/EN 61010-2-034 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-034: Particular requirements for measurement equipment for insulation resistance and test equipment for electric strength
EMC safety
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Properties
Measuring functions
- Insulation resistance measurement;
- Diagnostic test (PI, DAR, DD);
- Step voltage test;
- Withstanding voltage test (DC) up to 15 kV;
- Voltage and frequency measurement up to 999 V TRMS;
- Capacitance measurements.
Key features
- Insulation resistance measurements of up to 35 TΩ.
- Safety rated category up to CAT IV 1000 V to 3000 m.

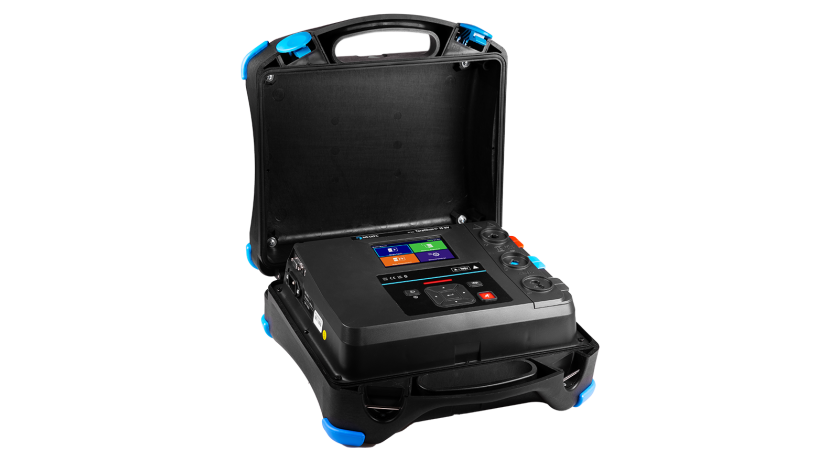

- Dual-case design.
- Coded banana connectors with locking feature.
- Newly designed HV crocodiles with a better grip.
- Li-ion battery 4400 mAh.
- Adjustable test voltage (50 V...15 kV) in 50 V and 100 V steps.
- Maximum short circuit/charge current: >4 mA (mains supply) or >2.4 mA (battery supply).
- Charging rate for capacitive load <4 s/μF at 15 kV.
- Discharging rate for capacitive load <1.6 s/μF at 15 kV (mains supply).
- 8 GB memory SD card for data saving.
- Burn or breakdown mode.
- Programmable timers.
- Automatic discharge of test object after finished measurement.
- Live voltage detection > 30 V
- IP65 case rating.
- User-friendly and intuitive operation.
- High voltage breakdown detection.
- Programmable AUTO SEQUENCEs.
- Auto adjustment function.
- Measurement results in numerical and graphical form.
- PC software MESM for downloading and analysing test results and for test report printing.
- Isolated RS-232 and USB communication ports, Bluetooth interface.
- High quality accessories, including shielded test leads.
- High EM interferences protection: Input AC current noise rejection 8 mA, input AC voltage noise rejection 1.5 kV
- Averaging of results (5, 10, 30, 60).
- Mains and rechargeable battery power supply.
Technical data
- Dimensions (w x h x d): 360 x 160 x 330 mm
- Weight (with batteries, without accessories): 6.3 kg
Applications
Renewable energy sources
- Generator stator testing
Power distribution
- Insulation resistance measurement of transformer’s windings
- Insulation of long cables
Specifications
Downloads
Datasheet | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 3215 TeraOhmHP 15 kV | en | 2024 | 08.08.2024 | 534.5 KB |
Manual | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
MI 3215 TeraOhmHP 15 kV | en | 1.1.1 | 08.08.2024 | 20753388 | 2.56 MB | Login |
DoC | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
UK Declaration of Conformity | uk | 02.09.2022 | QR code | External link | Unknown |
PC Software | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.25.1.56 | 24.10.2024 | Readme | zip | 440.8 MB | Login |
