MI 3295 Step Contact Voltage Measuring System
Earth testers

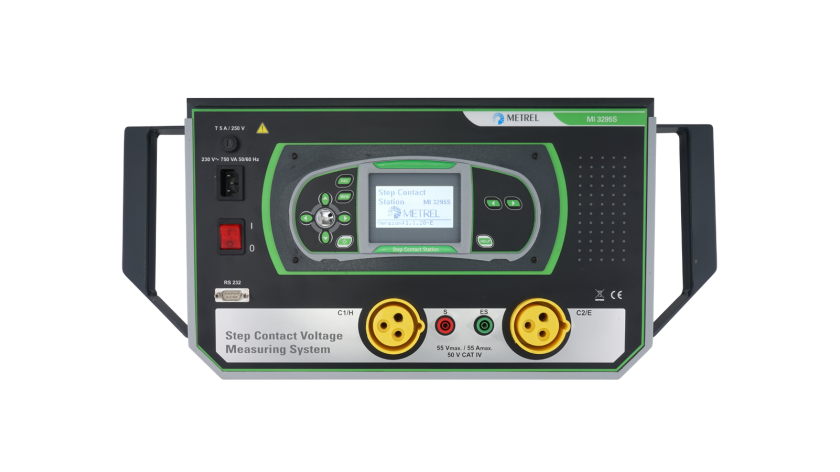

MI 3295 Step Contact Voltage Measuring System is a voltage measuring system for testing and verification of protective earthing of power stations, substation and other power systems.
Do you own this product?

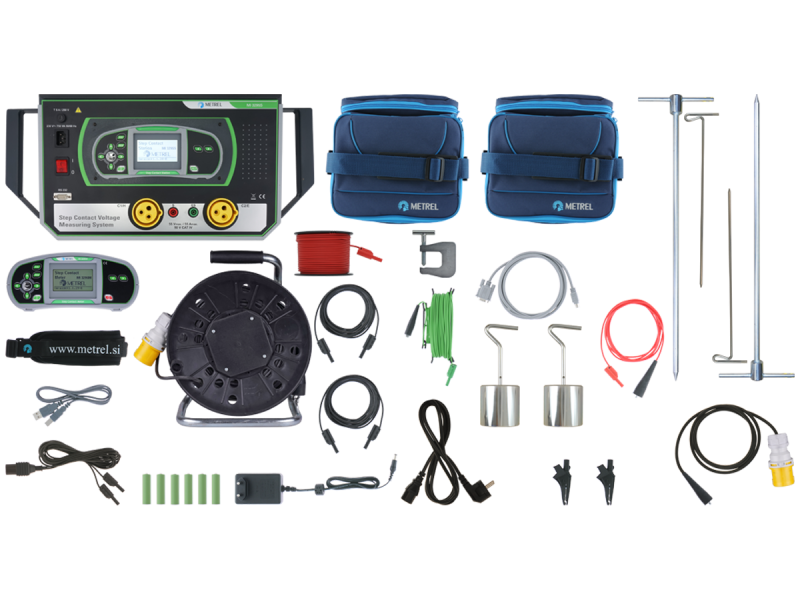

Select a set
- Instrument MI 3295M
- Instrument MI 3295S
- Mains cable
- Step voltage probe (25 kg), 2 pcs
- Current earth spike
- Potential earth spike
- Current test lead, 50 m, black, 10 mm2, with crocodile clip, on wheel
- Current test lead, 10 m, black, 10 mm2, with crocodile clip
- Test lead, black, 2 x 3 m
- Test lead, green, 10 m
- Test lead, black, 1.5 m
- Test lead, red, 50 m
- Connection lead with crocodile clip, red, 1 m
- Crocodile clip, 4 pcs
- RS232 cable USB cable
- Soft carrying bag, 2 pcs
- Soft carrying neck belt
- NiMH battery cells, type AA, 6 pcs
- Power supply adapter
- CD with instruction manual and PC SW HVLink PRO
- Instruction manual
- Calibration certificate
Videos
Instructional
Instructional
Standards applied
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
Earthing and Grounding
- EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
- HD 637 S1 Power installations exceeding 1 kV a.c.
- IEEE Guide for Safety in AC Substation Grounding
- IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
- IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
- RAT 2008 Spanish high-voltage regulation
Properties
Measuring functions
- Step voltage;
- Contact voltage;
- Specific earth resistance;
- Earth resistance.
Key features
- Accurate: high accuracy of the measurements due to a high current of up to 50 A and effective suppression of noise.
- Noise immunity: excellent immunity even against changing earth currents.
- Autonomous Step Voltage meter: no need for long potential leads; a few meters can be used simultaneously.
- Safe: high safety due to low output voltage (55 V).
- Low weight: the weight of the Station is 29.5 kg only.
- Memory: up to 1000 test results can be saved into the 3-level internal memory of the system.
- PC SW HVLink PRO included in the standard set enables downloading and analysis of results and printing of test reports.
Technical data
Station:
Dimensions (w x h x l): 563 X 275 X 257 mm
Weight (with batteries, without accessories): 29.5 kg
Meter:
Dimensions (w x h x l): 230 X 103 X 115 mm
Weight (with batteries, without accessories): 1.3 kg
