MI 3290 GP Earth Analyser
Earth testers

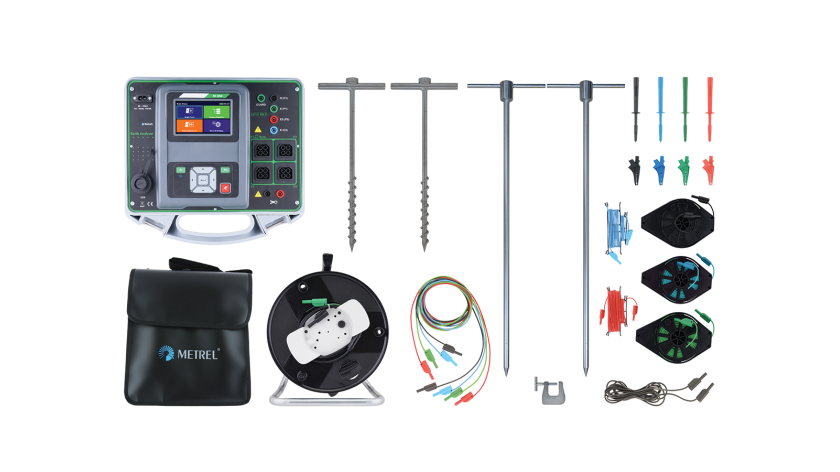

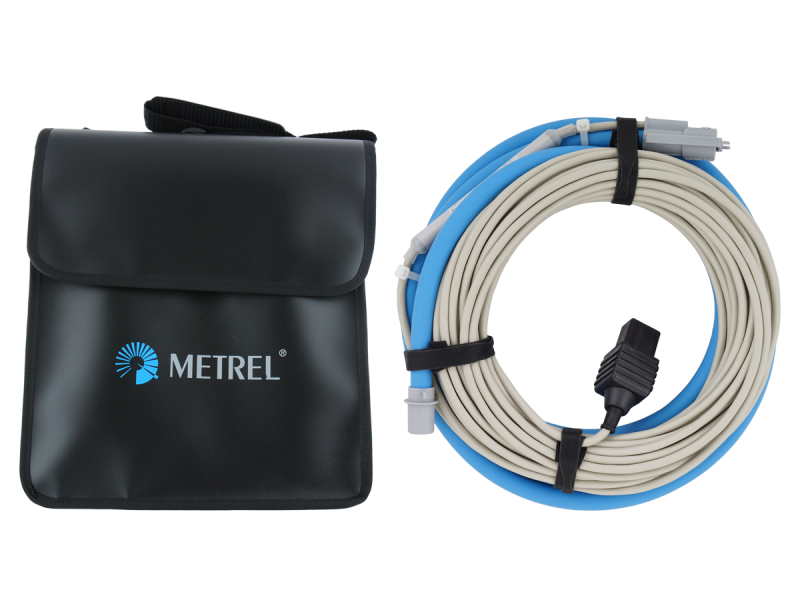

MI 3290 with BASIC ACCESSORIES included in all MI 3290 sets

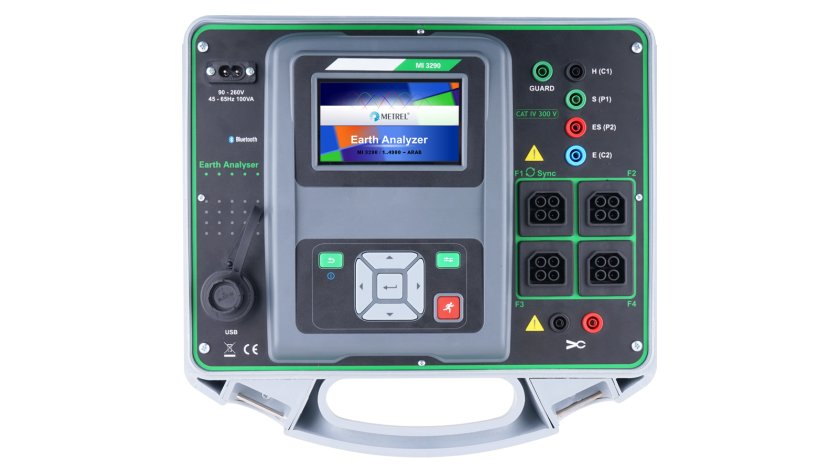

- MI 3290 instrument
- A 1529 Current earth spike 90 cm, 2 pcs
- A 1528 Potential earth spike 42 cm, 2 pcs
- A 1700 Connection lead black 2 m
- A 1526 Test lead 5 m blue
- A 1527 Test lead 5 m red
- A 1509 Test lead 50 m black on cable reel
- A 1510 Test lead 50 m green on cable reel
- A 1525 Test lead 50 m blue on cable reel
- A 1508 Shielded test lead 75 m on reel
- A 1530 G clamp
- Set of: test probe, crocodile clip and 2 m test lead, 4 pcs
- A 1081 Bag for accessories
- A 1727 USB cable
- Mains cable
- Instruction manual
- PC SW Metrel ES Manager
- Calibration certificate
MI 3290 Earth Analyser je prenosen, baterijsko ali omrežno napajan testni inštrument z izjemno IP zaščito (IP 54 za odprt kovček), namenjen meritvam ozemljitvene upornosti, specifične upornosti tal in zemeljskega potenciala različnih energetskih ter drugih objektov. Uporabnik lahko izbira med različnimi metodami, od klasične 3-žične meritve zemeljske upornosti do eno ali štirikleščne metode za meritve zemeljske upornosti stebrov. Poleg tega ima na izbiro merilne metode z različnimi frekvencami; ena frekvenca ali frekvenčni prelet od 55 Hz do 15 kHz, visoko frekvenčna metoda z 25 kHz in pulzno metodo za simulacijo udara strele. Zaradi visoke odpornosti na elektromagnetne motnje iz okolja je inštrument še posebej primeren za industrijska okolja. Instrument bo na voljo v različnih sestavih, ki so kombinacija različnih priborov in merilnih funkcij inštrumenta.
