MI 2093 Line Tracer

Other Instruments / adapters / accessories

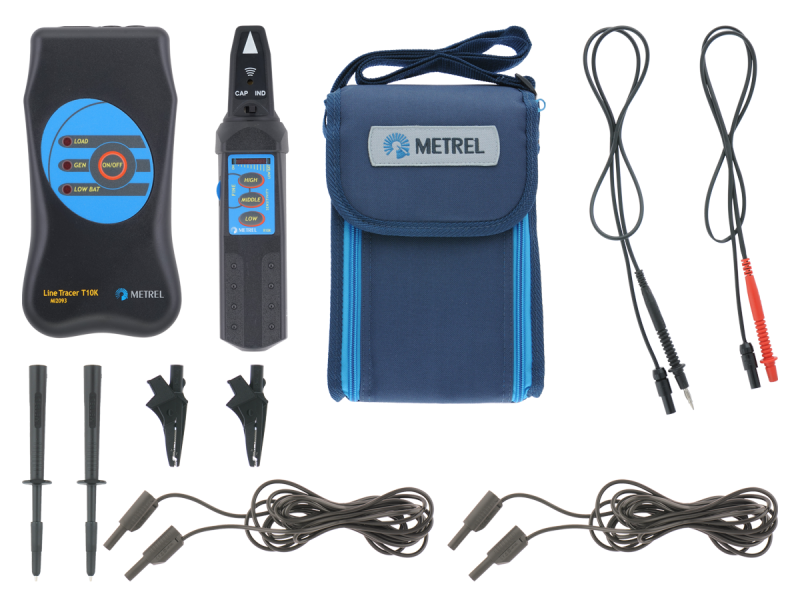

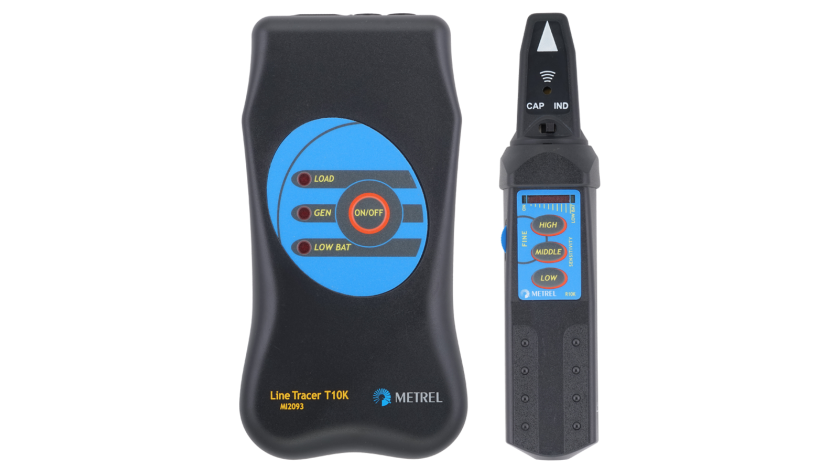

The MI 2093 Line Tracer is a universal instrument intended for tracing hidden conductive paths under plasters in walls, floors and ground or for determining one wire in a tuft of wires. Fuses or outlets belonging to a certain loop can be located as well. Line Tracer helps the operator to resolve hidden line problems easily (short circuits, interruptions, breakages).

Select a set

Properties

Measuring functions

  • Tracing cables in walls, ceilings, floor and ground;
  • Tracing live or voltage free cables;
  • Locating cable interruptions and short-circuits in cables;
  • Locating concealed sockets and distribution boxes;
  • Locating fuses and assignment to circuits;
  • Determining an individual wire in a bundle of wires;
  • Tracing pipe installations and other conductive loops.

Key features

  • Detection depth up to 2 m can be achieved.
  • Works on both, energized and non-energized systems.
  • The highly sensitive Receiver R10K detects injected signal around the measured line or object.
  • Three levels of sensitivity adjustment: low, middle and high. Each level can be additionally precisely adjusted.
  • Dual, bar-graph and buzzer indicator ensures indication in dark and noisy environment.

Technical data

Dimensions (w x h x l):

  • Transmitter: 100 x 50 x 200 mm
  • Receiver: 45 x 45 x 210 mm

Mass (without accessories):

  • Transmitter: 0.3 kg
  • Receiver: 0.15 kg

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 2093 Line Tracer en 1.0 02.06.2016 pdf 501.68 KB
Manual Language Version Release Notes Type Size Download
MI 2093 Line Tracer en 3.2.6 09.09.2022 20 750 717 pdf 1.06 MB Login
DoC Language Version Release Notes Type Size Download
UK Declaration of Conformity uk 02.09.2022 QR code External link Unknown
