S 2115 Safety Module with current limitation
Accessories

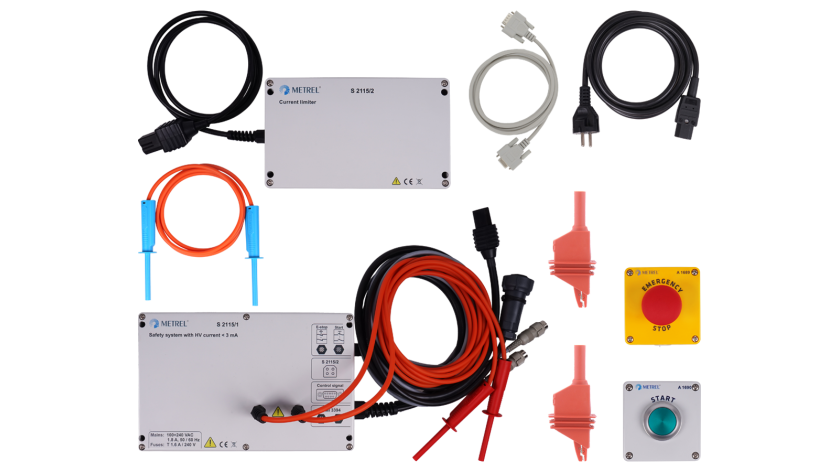

S 2115 Standard set
- S 2115/1 Safety system with current limit
- S 2115/2 Current limiting resistors
- 1x A 1728 Power cable, 2m, 3x0.75mm2
- 1x A 1773 HV Crocodile, Red, mini, 2 pcs
- 1x A 1602 HV test lead, Blue, 1.5m, 5kV
- 1x A 1690 Start button
- 1x A 1689 Stop button
- 1x A 1017 RS232 communication cable
- Instruction manual
In many countries additional workplace safety measures are not needed during the high voltage testing with a.c. up to 3mA. If the current is higher than 3 mA a special test system with automatic protection against direct contact or a sealed off area with warning light and two-handed operation is required. This Safety module is intended for limitation of the test current in the HV tests to a safe level. It consists of two boxes. The first box S 2115_1 contains resistors that are connected in series with the HV measuring circuit. The resistors significantly reduce the output power of the high voltage circuit (short circuit power < 20 mA). The second box S 2115_2 contains a current monitor. If the test current exceeds 3 mA the inbuilt current monitor will disconnect the measuring circuits from the mains within a safe time. The START button is intended to activate the safety module after being (re-)energized.
Do you own this product?
Standards applied
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 60950 Information technology equipment – Safety
Portable appliances safety
- PAT Competences: Portable Appliances Safety Testing
- IEC/EN 60335-1 Household and similar electrical appliances - Safety
- IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
- VDE 0701 Inspection after repair, modification of electrical appliances - periodic
- VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
Instrument safety towards user
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
Applications
End-of-line safety testing in production
- Test station where test current for withstanding HV test does not exceed 3mA (S 2115)
Optional accessories

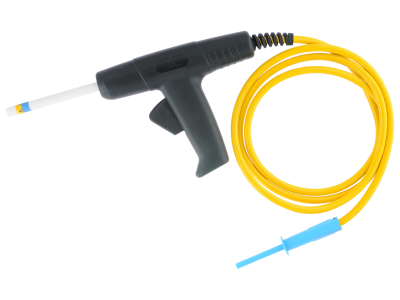

A 1494 HV test pistol with 2 m cable, blue
A 1494 15M HV test pistol with 15 m cable, blue
