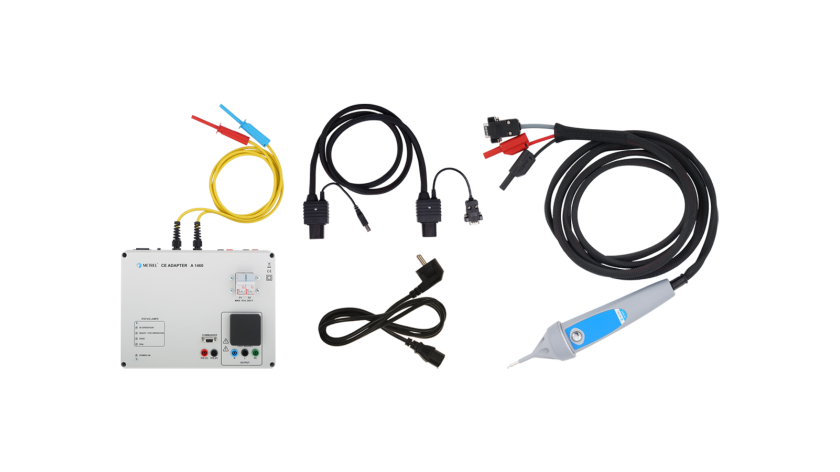

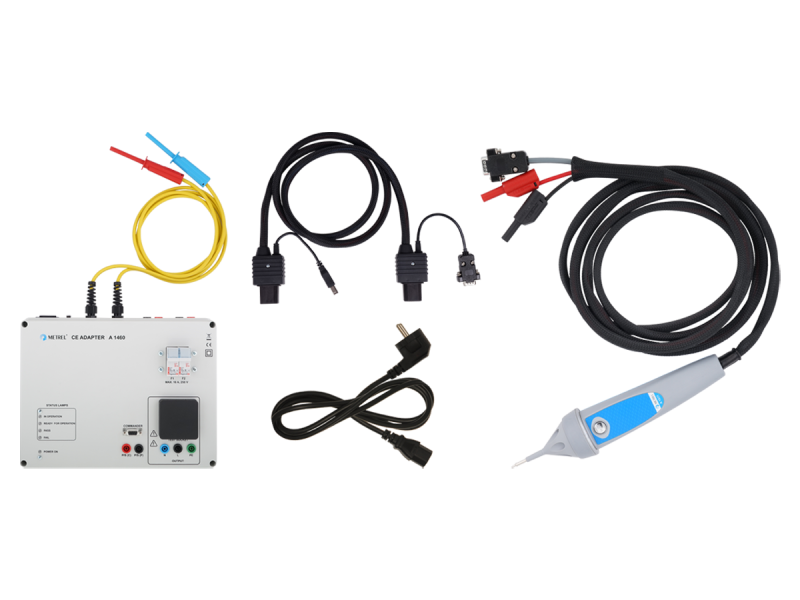

A 1460 CE Adapter
Accessories

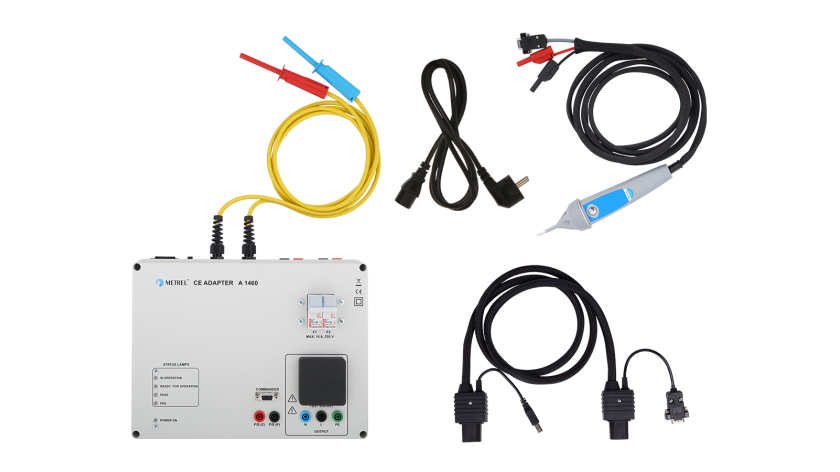

The A 1460 CE Adapter is an active switch or adapter intended to run AutoSequences® on electrical equipment in combination with the master instruments. The operation of CE test adapter is completely controlled by the master instrument, no user intervention during the tests is needed. I/O connections and LEDs for controlling the AutoSequence® flow are integrated. The adapter is protected against applying too high voltage to its outputs (HW and SW protection).
Do you own this product?
Optional accessories
A 1495 Remote control pedal
Remote control pedal is used for safe remote start of high voltage insulation test and additionally allows free hand operation of the worker.
A 1496 Warning lamp / 2-LED signal tower HV
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions for use with A 1460. If A 1496 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1497 Warning lamp / 4 LED’s signal tower with buzzer
Colour - LED signal tower with build-in buzzer visually and acoustically signalizes ongoing tests and test conditions for use with A 1460. If A 1497 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1586 Rack mount adapter for A 1460 CE Adapter
A 1586 is a rack mount adapter for 19” rack, which is designed to hold the A 1460 CE Adapter. This product kit includes the parts needed for complete and easy installation of the adaptor kit in RITAL square hole racks, and some third-party racks.
A 1674 Rack housing
The A 1674 compact desktop enclosure is designed for integration of the CE Multitester instrument, or/and A 1600 SWITCH 5kV. Its design enables fast and simple integration of measuring components.
A 1496 MAG Warning lamp / 2-LED signal tower HV ready for magnetic mounting
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions.
Downloads
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| A 1460 CE Adapter | en | 1.2.3 | 03.11.2025 | 20 752 530 | 697.63 KB |
